对于某些加固壳，加载解释器 elf 的方式不会是常规的 System.loadLibrary , 而是仿照 System.loadLibrary 在 AOSP 中的实现方式，在 JNI 中自己实现 so 的加载

本次所使用到的 AOSP 的源码的安卓版本为 android-12.0.0_r34

# so 的启动过程

# System.load

在 Android 中我们想要加载一个 so 时，可以有两种方式

静态加载
System.loadLibrary("native");
这种加载方式下，要加载的 so 一般已经内置在 apk 的 lib/[arch]/ 中

动态加载

	String soPath = "/data/data/com.example.myapp/libmynative.so";
	System.load(soPath);

这一种加载方式可以加载任意路径下的 so

这里我们将动态加载，即 System.load 函数作为分析的入口，可以发现它实际上调用的是 Runtime.getRuntime().load0

对于静态加载 System.loadLibrary 来说，它调用的函数是 Runtime.getRuntime().loadLibrary0(Reflection.getCallerClass(), libname);

	//android-platform\libcore\ojluni\src\main\java\java\lang\System.java

	/**
	* Loads the native library specified by the filename argument. The filename
	* argument must be an absolute path name.
	*
	* If the filename argument, when stripped of any platform-specific library
	* prefix, path, and file extension, indicates a library whose name is,
	* for example, L, and a native library called L is statically linked
	* with the VM, then the JNI_OnLoad_L function exported by the library
	* is invoked rather than attempting to load a dynamic library.
	* A filename matching the argument does not have to exist in the
	* file system.
	* See the JNI Specification for more details.
	*
	* Otherwise, the filename argument is mapped to a native library image in
	* an implementation-dependent manner.
	*
	* <p>
	* The call <code>System.load(name)</code> is effectively equivalent
	* to the call:
	* <blockquote><pre>
	* Runtime.getRuntime().load(name)
	* </pre></blockquote>
	*
	* @param filename the file to load.
	* @exception SecurityException if a security manager exists and its
	* <code>checkLink</code> method doesn't allow
	* loading of the specified dynamic library
	* @exception UnsatisfiedLinkError if either the filename is not an
	* absolute path name, the native library is not statically
	* linked with the VM, or the library cannot be mapped to
	* a native library image by the host system.
	* @exception NullPointerException if <code>filename</code> is
	* <code>null</code>
	* @see java.lang.Runtime#load(java.lang.String)
	* @see java.lang.SecurityManager#checkLink(java.lang.String)
	*/
	@CallerSensitive
	public static void load(String filename) {
	Runtime.getRuntime().load0(Reflection.getCallerClass(), filename);
	}

Reflection.getCallerClass

第一个传入的参数 Reflection.getCallerClass() 相关的实现即注释如下，读起来可能会有点绕，什么叫返回方法的方法的调用者的类？

	//android-platform\libcore\ojluni\src\main\java\sun\reflect\Reflection.java
	/** Returns the class of the caller of the method calling this method,
	ignoring frames associated with java.lang.reflect.Method.invoke()
	and its implementation. *
	@CallerSensitive
	public static native Class<?> getCallerClass();
	*/
	public static Class<?> getCallerClass() {
	// This method (getCallerClass()) constitutes another stack frame,
	// so we need to call getStackClass2() rather than getStackClass1().
	return VMStack.getStackClass2();
	}

其实按照逆向的角度来看，就是返回调用栈的最底层的那个类，例如有一个 Class A 经过如下的调用过程: Class A->反射1->反射2->反射n->...->Reflection.getCallerClass() , 最终 getCallerClass 方法将返回 Class A

# Runtime.getRuntime().load0

在 Runtime.getRuntime().load0 中进行了 filename 是否是 绝对路径 以及 空字符串 的检查之后，便开始调用 nativeLoad 真正的去加载 so 了

	//android-platform\libcore\ojluni\src\main\java\java\lang\Runtime.java
	synchronized void load0(Class<?> fromClass, String filename) {
	if (!(new File(filename).isAbsolute())) {
	throw new UnsatisfiedLinkError(
	"Expecting an absolute path of the library: " + filename);
	}
	if (filename == null) {
	throw new NullPointerException("filename == null");
	}
	String error = nativeLoad(filename, fromClass.getClassLoader());
	if (error != null) {
	throw new UnsatisfiedLinkError(error);
	}
	}

fromClass.getClassLoader()

向 nativeLoad 中传入的第二个参数是 fromClass.getClassLoader() , 利用这个方法可以获取到 fromClass 类的 ClassLoader

为什么要获取 ClassLoader 并将其作为参数传入 nativeLoad?

# Runtime.java 中的 nativeLoad

在 nativeLoad 重载调用了 nativeLoad(String filename, ClassLoader loader, Class<?> caller) , 而该函数的声明为 native , 这便意味着我们即将走出 java 来到 c++ 的世界了

	//android-platform\libcore\ojluni\src\main\java\java\lang\Runtime.java
	private static String nativeLoad(String filename, ClassLoader loader) {
	return nativeLoad(filename, loader, null);
	}

	private static native String nativeLoad(String filename, ClassLoader loader, Class<?> caller);

# Runtime.c 中的 nativeLoad

在常规的 JNI 函数的编写过程中，想要让 java 层调用 JNI 中定义的函数，要么使用静态注册，利用 JNIEXPORT 关键字将这个函数导出，或者使用 RegisterNatives 方法去进行动态注册，而在 AOSP 定义 nativeLoad 时，这两种方法都使用到了，对于学习 JNI 的注册过程非常具有参考意义

查看 Runtime_nativeLoad 函数，可以发现它继续调用了 JVM_NativeLoad

	//android-platform\libcore\ojluni\src\main\native\Runtime.c
	JNIEXPORT jstring JNICALL
	Runtime_nativeLoad(JNIEnv* env, jclass ignored, jstring javaFilename,
	jobject javaLoader, jclass caller)
	{
	return JVM_NativeLoad(env, javaFilename, javaLoader, caller);
	}

	//these macros below are defined at android-platform\libnativehelper\include_platform_header_only\nativehelper\jni_macros.h


	#define FAST_NATIVE_METHOD(className, functionName, signature) \
	MAKE_JNI_FAST_NATIVE_METHOD(#functionName, signature, className ## _ ## functionName)
	#define NATIVE_METHOD(className, functionName, signature) \
	MAKE_JNI_NATIVE_METHOD(#functionName, signature, className ## _ ## functionName)
	#define MAKE_JNI_NATIVE_METHOD(name, signature, function) \
	_NATIVEHELPER_JNI_MAKE_METHOD(kNormalNative, name, signature, function)
	#define _NATIVEHELPER_JNI_MAKE_METHOD(kind, name, sig, fn) \
	MAKE_CHECKED_JNI_NATIVE_METHOD(kind, name, sig, fn)

	//MAKE_CHECKED_JNI_NATIVE_METHOD is defined at platform\libnativehelper\include_platform_header_only\nativehelper\detail\signature_checker.h
	#define MAKE_CHECKED_JNI_NATIVE_METHOD(native_kind, name_, signature_, fn) \
	([]() { \
	using namespace nativehelper::detail; /* NOLINT(google-build-using-namespace) */ \
	static_assert( \
	MatchJniDescriptorWithFunctionType<native_kind, \
	decltype(fn), \
	fn, \
	sizeof(signature_)>(signature_),\
	"JNI signature doesn't match C++ function type."); \
	/* Suppress implicit cast warnings by explicitly casting. */ \
	return JNINativeMethod { \
	const_cast<decltype(JNINativeMethod::name)>(name_), \
	const_cast<decltype(JNINativeMethod::signature)>(signature_), \
	reinterpret_cast<void*>(&(fn))}; \
	})()

	//NELEM is defined at platform\libnativehelper\include\nativehelper\JNIHelp.h
	#define NELEM(x) ((int) (sizeof(x) / sizeof((x)[0])))

	//jniRegisterNativeMethods is defined at platform\libnativehelper\JNIHelp.c
	int jniRegisterNativeMethods(JNIEnv* env, const char* className,
	const JNINativeMethod* methods, int numMethods)
	{
	ALOGV("Registering %s's %d native methods...", className, numMethods);
	jclass clazz = (*env)->FindClass(env, className);
	ALOG_ALWAYS_FATAL_IF(clazz == NULL,
	"Native registration unable to find class '%s'; aborting...",
	className);
	int result = (*env)->RegisterNatives(env, clazz, methods, numMethods);
	(*env)->DeleteLocalRef(env, clazz);
	if (result == 0) {
	return 0;
	}

	// Failure to register natives is fatal. Try to report the corresponding exception,
	// otherwise abort with generic failure message.
	jthrowable thrown = (*env)->ExceptionOccurred(env);
	if (thrown != NULL) {
	struct ExpandableString summary;
	ExpandableStringInitialize(&summary);
	if (GetExceptionSummary(env, thrown, &summary)) {
	ALOGF("%s", summary.data);
	}
	ExpandableStringRelease(&summary);
	(*env)->DeleteLocalRef(env, thrown);
	}
	ALOGF("RegisterNatives failed for '%s'; aborting...", className);
	return result;
	}

	static JNINativeMethod gMethods[] = {
	FAST_NATIVE_METHOD(Runtime, freeMemory, "()J"),
	FAST_NATIVE_METHOD(Runtime, totalMemory, "()J"),
	FAST_NATIVE_METHOD(Runtime, maxMemory, "()J"),
	NATIVE_METHOD(Runtime, nativeGc, "()V"),
	NATIVE_METHOD(Runtime, nativeExit, "(I)V"),
	NATIVE_METHOD(Runtime, nativeLoad,
	"(Ljava/lang/String;Ljava/lang/ClassLoader;Ljava/lang/Class;)"
	"Ljava/lang/String;"),
	};

	void register_java_lang_Runtime(JNIEnv* env) {
	jniRegisterNativeMethods(env, "java/lang/Runtime", gMethods, NELEM(gMethods));
	}

# JVM_NativeLoad

JVM_NativeLoad 获取当前进程的 javaVM 对象并调用 javaVM 的 LoadNativeLibrary 方法

	//android-platform\art\openjdkjvm\OpenjdkJvm.cc
	JNIEXPORT jstring JVM_NativeLoad(JNIEnv* env,
	jstring javaFilename,
	jobject javaLoader,
	jclass caller) {
	// 实例化一个文件对象
	ScopedUtfChars filename(env, javaFilename);
	if (filename.c_str() == nullptr) {
	return nullptr;
	}

	std::string error_msg;
	{
	// 获取当前进程的 javaVM 对象
	art::JavaVMExt* vm = art::Runtime::Current()->GetJavaVM();
	bool success = vm->LoadNativeLibrary(env,
	filename.c_str(),
	javaLoader,
	caller,
	&error_msg);
	if (success) {
	return nullptr;
	}
	}

	// Don't let a pending exception from JNI_OnLoad cause a CheckJNI issue with NewStringUTF.
	env->ExceptionClear();
	return env->NewStringUTF(error_msg.c_str());
	}

# vm->LoadNativeLibrary

LoadNativeLibrary 的代码很长，细看之后可以分为三个部分

so 加载前
这个部分主要判断即将被 so 是否之前就已经被加载过，如果已经被加载好了，那么就直接退出这个函数并返回
so 加载时
这个部分就是 AOSP 实现动态链接库加载的核心实现，之后会进行详细的分析
当找到这个 so 的 soinfo 之后 (具体是在 do_dlopen 中被找到), 会立即调用 soinfo::call_constructors 函数依次加载 init 和 init_array 函数

so 加载后
在这最后一个部分中，当一个 so 被成功加载后，会立即调用 so 的导出函数中的 JNI_OnLoad 函数 (如果 JNI_OnLoad 存在的话)

	//android-platform\art\runtime\jni\java_vm_ext.cc
	// 阶段三：当 so 被加载之后，立即调用导出函数 JNI_OnLoad
	bool was_successful = false;
	void* sym = library->FindSymbol("JNI_OnLoad", nullptr);
	if (sym == nullptr) {
	VLOG(jni) << "[No JNI_OnLoad found in \"" << path << "\"]";
	was_successful = true;
	} else {
	// Call JNI_OnLoad. We have to override the current class
	// loader, which will always be "null" since the stuff at the
	// top of the stack is around Runtime.loadLibrary(). (See
	// the comments in the JNI FindClass function.)
	ScopedLocalRef<jobject> old_class_loader(env, env->NewLocalRef(self->GetClassLoaderOverride()));
	self->SetClassLoaderOverride(class_loader);

	VLOG(jni) << "[Calling JNI_OnLoad in \"" << path << "\"]";
	using JNI_OnLoadFn = int()(JavaVM, void*);
	JNI_OnLoadFn jni_on_load = reinterpret_cast<JNI_OnLoadFn>(sym);
	int version = (*jni_on_load)(this, nullptr);

	if (IsSdkVersionSetAndAtMost(runtime_->GetTargetSdkVersion(), SdkVersion::kL)) {
	// Make sure that sigchain owns SIGSEGV.
	EnsureFrontOfChain(SIGSEGV);
	}

	self->SetClassLoaderOverride(old_class_loader.get());

	if (version == JNI_ERR) {
	StringAppendF(error_msg, "JNI_ERR returned from JNI_OnLoad in \"%s\"", path.c_str());
	} else if (JavaVMExt::IsBadJniVersion(version)) {
	StringAppendF(error_msg, "Bad JNI version returned from JNI_OnLoad in \"%s\": %d",
	path.c_str(), version);
	// It's unwise to call dlclose() here, but we can mark it
	// as bad and ensure that future load attempts will fail.
	// We don't know how far JNI_OnLoad got, so there could
	// be some partially-initialized stuff accessible through
	// newly-registered native method calls. We could try to
	// unregister them, but that doesn't seem worthwhile.
	} else {
	was_successful = true;
	}
	VLOG(jni) << "[Returned " << (was_successful ? "successfully" : "failure")
	<< " from JNI_OnLoad in \"" << path << "\"]";
	}

完整的 LoadNativeLibrary 代码

	//android-platform\art\runtime\jni\java_vm_ext.cc
	bool JavaVMExt::LoadNativeLibrary(JNIEnv* env,
	const std::string& path,
	jobject class_loader,
	jclass caller_class,
	std::string* error_msg) {
	error_msg->clear();

	// 阶段一：判断目标 so 是否已经被加载过
	// See if we've already loaded this library. If we have, and the class loader
	// matches, return successfully without doing anything.
	// TODO: for better results we should canonicalize (规范化) the pathname (or even compare
	// inodes). This implementation is fine if everybody is using System.loadLibrary.
	SharedLibrary* library;
	Thread* self = Thread::Current();
	{
	// TODO: move the locking (and more of this logic) into Libraries.
	MutexLock mu(self, *Locks::jni_libraries_lock_);
	library = libraries_->Get(path);
	}
	void* class_loader_allocator = nullptr;
	std::string caller_location;
	{
	ScopedObjectAccess soa(env);
	// As the incoming class loader is reachable/alive during the call of this function,
	// it's okay to decode it without worrying about unexpectedly marking it alive.
	ObjPtr<mirror::ClassLoader> loader = soa.Decode<mirror::ClassLoader>(class_loader);

	ClassLinker* class_linker = Runtime::Current()->GetClassLinker();
	if (class_linker->IsBootClassLoader(soa, loader.Ptr())) {
	loader = nullptr;
	class_loader = nullptr;
	if (caller_class != nullptr) {
	ObjPtr<mirror::Class> caller = soa.Decode<mirror::Class>(caller_class);
	ObjPtr<mirror::DexCache> dex_cache = caller->GetDexCache();
	if (dex_cache != nullptr) {
	caller_location = dex_cache->GetLocation()->ToModifiedUtf8();
	}
	}
	}

	class_loader_allocator = class_linker->GetAllocatorForClassLoader(loader.Ptr());
	CHECK(class_loader_allocator != nullptr);
	}
	if (library != nullptr) {
	// Use the allocator pointers for class loader equality to avoid unnecessary weak root decode.
	if (library->GetClassLoaderAllocator() != class_loader_allocator) {
	// The library will be associated with class_loader. The JNI
	// spec says we can't load the same library into more than one
	// class loader.
	//
	// This isn't very common. So spend some time to get a readable message.
	auto call_to_string = [&](jobject obj) -> std::string {
	if (obj == nullptr) {
	return "null";
	}
	// Handle jweaks. Ignore double local-ref.
	ScopedLocalRef<jobject> local_ref(env, env->NewLocalRef(obj));
	if (local_ref != nullptr) {
	ScopedLocalRef<jclass> local_class(env, env->GetObjectClass(local_ref.get()));
	jmethodID to_string = env->GetMethodID(local_class.get(),
	"toString",
	"()Ljava/lang/String;");
	DCHECK(to_string != nullptr);
	ScopedLocalRef<jobject> local_string(env,
	env->CallObjectMethod(local_ref.get(), to_string));
	if (local_string != nullptr) {
	ScopedUtfChars utf(env, reinterpret_cast<jstring>(local_string.get()));
	if (utf.c_str() != nullptr) {
	return utf.c_str();
	}
	}
	if (env->ExceptionCheck()) {
	// We can't do much better logging, really. So leave it with a Describe.
	env->ExceptionDescribe();
	env->ExceptionClear();
	}
	return "(Error calling toString)";
	}
	return "null";
	};
	std::string old_class_loader = call_to_string(library->GetClassLoader());
	std::string new_class_loader = call_to_string(class_loader);
	StringAppendF(error_msg, "Shared library \"%s\" already opened by "
	"ClassLoader %p(%s); can't open in ClassLoader %p(%s)",
	path.c_str(),
	library->GetClassLoader(),
	old_class_loader.c_str(),
	class_loader,
	new_class_loader.c_str());
	LOG(WARNING) << *error_msg;
	return false;
	}
	VLOG(jni) << "[Shared library \"" << path << "\" already loaded in "
	<< " ClassLoader " << class_loader << "]";
	if (!library->CheckOnLoadResult()) {
	StringAppendF(error_msg, "JNI_OnLoad failed on a previous attempt "
	"to load \"%s\"", path.c_str());
	return false;
	}
	return true;
	}


	// 阶段二：加载 so
	// Open the shared library. Because we're using a full path, the system
	// doesn't have to search through LD_LIBRARY_PATH. (It may do so to
	// resolve this library's dependencies though.)

	// Failures here are expected when java.library.path has several entries
	// and we have to hunt for the lib.

	// Below we dlopen but there is no paired dlclose, this would be necessary if we supported
	// class unloading. Libraries will only be unloaded when the reference count (incremented by
	// dlopen) becomes zero from dlclose.

	// Retrieve the library path from the classloader, if necessary.
	ScopedLocalRef<jstring> library_path(env, GetLibrarySearchPath(env, class_loader));

	Locks::mutator_lock_->AssertNotHeld(self);
	const char* path_str = path.empty() ? nullptr : path.c_str();
	bool needs_native_bridge = false;
	char* nativeloader_error_msg = nullptr;
	// 调用 dlopen 打开目标 so
	void* handle = android::OpenNativeLibrary(
	env,
	runtime_->GetTargetSdkVersion(),
	path_str,
	class_loader,
	(caller_location.empty() ? nullptr : caller_location.c_str()),
	library_path.get(),
	&needs_native_bridge,
	&nativeloader_error_msg);
	VLOG(jni) << "[Call to dlopen(\"" << path << "\", RTLD_NOW) returned " << handle << "]";

	if (handle == nullptr) {
	*error_msg = nativeloader_error_msg;
	android::NativeLoaderFreeErrorMessage(nativeloader_error_msg);
	VLOG(jni) << "dlopen(\"" << path << "\", RTLD_NOW) failed: " << *error_msg;
	return false;
	}

	if (env->ExceptionCheck() == JNI_TRUE) {
	LOG(ERROR) << "Unexpected exception:";
	env->ExceptionDescribe();
	env->ExceptionClear();
	}
	// Create a new entry.
	// TODO: move the locking (and more of this logic) into Libraries.
	bool created_library = false;
	{
	// Create SharedLibrary ahead of taking the libraries lock to maintain lock ordering.
	std::unique_ptr<SharedLibrary> new_library(
	new SharedLibrary(env,
	self,
	path,
	handle,
	needs_native_bridge,
	class_loader,
	class_loader_allocator));

	MutexLock mu(self, *Locks::jni_libraries_lock_);
	library = libraries_->Get(path);
	if (library == nullptr) { // We won race to get libraries_lock.
	library = new_library.release();
	libraries_->Put(path, library);
	created_library = true;
	}
	}
	if (!created_library) {
	LOG(INFO) << "WOW: we lost a race to add shared library: "
	<< "\"" << path << "\" ClassLoader=" << class_loader;
	return library->CheckOnLoadResult();
	}
	// 动态链接库装载完成
	VLOG(jni) << "[Added shared library \"" << path << "\" for ClassLoader " << class_loader << "]";

	// 阶段三：当 so 被加载之后，立即调用导出函数 JNI_OnLoad
	bool was_successful = false;
	void* sym = library->FindSymbol("JNI_OnLoad", nullptr);
	if (sym == nullptr) {
	VLOG(jni) << "[No JNI_OnLoad found in \"" << path << "\"]";
	was_successful = true;
	} else {
	// Call JNI_OnLoad. We have to override the current class
	// loader, which will always be "null" since the stuff at the
	// top of the stack is around Runtime.loadLibrary(). (See
	// the comments in the JNI FindClass function.)
	ScopedLocalRef<jobject> old_class_loader(env, env->NewLocalRef(self->GetClassLoaderOverride()));
	self->SetClassLoaderOverride(class_loader);

	VLOG(jni) << "[Calling JNI_OnLoad in \"" << path << "\"]";
	using JNI_OnLoadFn = int()(JavaVM, void*);
	JNI_OnLoadFn jni_on_load = reinterpret_cast<JNI_OnLoadFn>(sym);
	int version = (*jni_on_load)(this, nullptr);

	if (IsSdkVersionSetAndAtMost(runtime_->GetTargetSdkVersion(), SdkVersion::kL)) {
	// Make sure that sigchain owns SIGSEGV.
	EnsureFrontOfChain(SIGSEGV);
	}

	self->SetClassLoaderOverride(old_class_loader.get());

	if (version == JNI_ERR) {
	StringAppendF(error_msg, "JNI_ERR returned from JNI_OnLoad in \"%s\"", path.c_str());
	} else if (JavaVMExt::IsBadJniVersion(version)) {
	StringAppendF(error_msg, "Bad JNI version returned from JNI_OnLoad in \"%s\": %d",
	path.c_str(), version);
	// It's unwise to call dlclose() here, but we can mark it
	// as bad and ensure that future load attempts will fail.
	// We don't know how far JNI_OnLoad got, so there could
	// be some partially-initialized stuff accessible through
	// newly-registered native method calls. We could try to
	// unregister them, but that doesn't seem worthwhile.
	} else {
	was_successful = true;
	}
	VLOG(jni) << "[Returned " << (was_successful ? "successfully" : "failure")
	<< " from JNI_OnLoad in \"" << path << "\"]";
	}

	library->SetResult(was_successful);
	return was_successful;
	}

# so 的加载过程

在刚刚对于 vm->LoadNativeLibrary 函数 so加载时 的简要分析中，我们知道目标 so 是通过 dlopen 打开的，我们可以从 android::OpenNativeLibrary 函数开始分析

	//android-platform\art\runtime\jni\java_vm_ext.cc
	bool JavaVMExt::LoadNativeLibrary(JNIEnv* env,
	const std::string& path,
	jobject class_loader,
	jclass caller_class,
	std::string* error_msg) {
	error_msg->clear();

	// 阶段一：判断目标 so 是否已经被加载过
	...
	// 阶段二：加载 so
	// Open the shared library. Because we're using a full path, the system
	// doesn't have to search through LD_LIBRARY_PATH. (It may do so to
	// resolve this library's dependencies though.)

	// Failures here are expected when java.library.path has several entries
	// and we have to hunt for the lib.

	// Below we dlopen but there is no paired dlclose, this would be necessary if we supported
	// class unloading. Libraries will only be unloaded when the reference count (incremented by
	// dlopen) becomes zero from dlclose.

	// Retrieve the library path from the classloader, if necessary.
	ScopedLocalRef<jstring> library_path(env, GetLibrarySearchPath(env, class_loader));

	Locks::mutator_lock_->AssertNotHeld(self);
	const char* path_str = path.empty() ? nullptr : path.c_str();
	bool needs_native_bridge = false;
	char* nativeloader_error_msg = nullptr;
	// 调用 dlopen 打开目标 so
	void* handle = android::OpenNativeLibrary(
	env,
	runtime_->GetTargetSdkVersion(),
	path_str,
	class_loader,
	(caller_location.empty() ? nullptr : caller_location.c_str()),
	library_path.get(),
	&needs_native_bridge,
	&nativeloader_error_msg);
	VLOG(jni) << "[Call to dlopen(\"" << path << "\", RTLD_NOW) returned " << handle << "]";

	if (handle == nullptr) {
	*error_msg = nativeloader_error_msg;
	android::NativeLoaderFreeErrorMessage(nativeloader_error_msg);
	VLOG(jni) << "dlopen(\"" << path << "\", RTLD_NOW) failed: " << *error_msg;
	return false;
	}

	if (env->ExceptionCheck() == JNI_TRUE) {
	LOG(ERROR) << "Unexpected exception:";
	env->ExceptionDescribe();
	env->ExceptionClear();
	}
	// Create a new entry.
	// TODO: move the locking (and more of this logic) into Libraries.
	bool created_library = false;
	{
	// Create SharedLibrary ahead of taking the libraries lock to maintain lock ordering.
	std::unique_ptr<SharedLibrary> new_library(
	new SharedLibrary(env,
	self,
	path,
	handle,
	needs_native_bridge,
	class_loader,
	class_loader_allocator));

	MutexLock mu(self, *Locks::jni_libraries_lock_);
	library = libraries_->Get(path);
	if (library == nullptr) { // We won race to get libraries_lock.
	library = new_library.release();
	libraries_->Put(path, library);
	created_library = true;
	}
	}
	if (!created_library) {
	LOG(INFO) << "WOW: we lost a race to add shared library: "
	<< "\"" << path << "\" ClassLoader=" << class_loader;
	return library->CheckOnLoadResult();
	}
	// 动态链接库装载完成
	VLOG(jni) << "[Added shared library \"" << path << "\" for ClassLoader " << class_loader << "]";

	// 阶段三：当 so 被加载之后，立即调用导出函数 JNI_OnLoad
	...
	}

# android::OpenNativeLibrary

这个函数中有条件编译，接下来我们分析的是 ART_TARGET_ANDROID 的编译条件分支

跟踪 path 参数，可以发现它被传入到了 android_dlopen_ext(const char* filename, int flag, const android_dlextinfo* extinfo) 函数中， flag RTLD_NOW 的含义是立即解析所有符号，并在加载时报告任何解析错误

android_dlopen_ext 函数的常见 flag 含义

RTLD_NOW
立即解析所有符号，并在加载时报告任何解析错误

RTLD_LAZY
只在符号首次使用时解析

RTLD_GLOBAL
将库及其符号添加到全局命名空间中，以便其他库可以使用这些符号

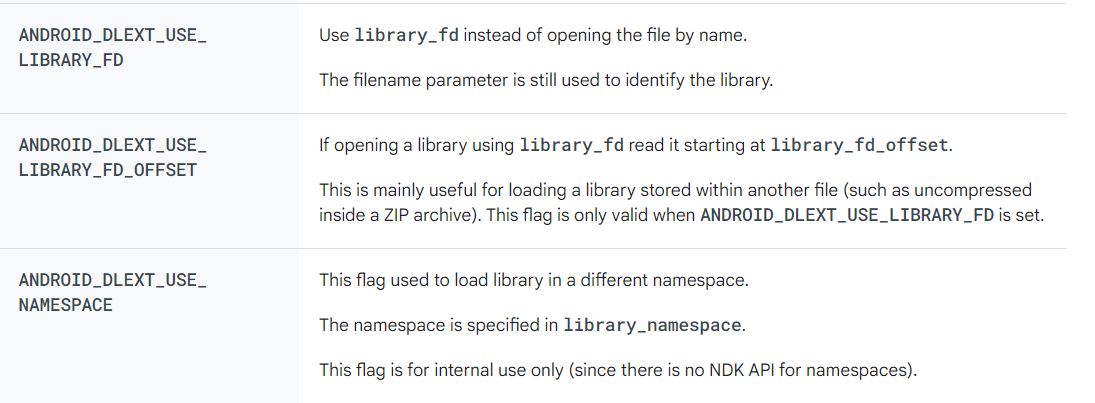

extinfo 的值为 {.flags = ANDROID_DLEXT_USE_NAMESPACE,.library_namespace = boot_namespace,};

	//android-platform\art\libnativeloader\native_loader.cpp
	void* OpenNativeLibrary(JNIEnv* env, int32_t target_sdk_version, const char* path,
	jobject class_loader, const char* caller_location, jstring library_path,
	bool* needs_native_bridge, char** error_msg) {
	// 条件编译
	//ART_TARGET_ANDROID - Defined for target Android builds of ART.
	//ref: https://android.googlesource.com/platform/art/+/32c8337/runtime/globals.h
	#if defined(ART_TARGET_ANDROID)
	UNUSED(target_sdk_version);

	if (class_loader == nullptr) {
	*needs_native_bridge = false;
	if (caller_location != nullptr) {
	android_namespace_t* boot_namespace = FindExportedNamespace(caller_location);
	if (boot_namespace != nullptr) {
	const android_dlextinfo dlextinfo = {
	.flags = ANDROID_DLEXT_USE_NAMESPACE,
	.library_namespace = boot_namespace,
	};
	// 调用 android_dlopen_ext, 并传入 path
	void* handle = android_dlopen_ext(path, RTLD_NOW, &dlextinfo);
	if (handle == nullptr) {
	*error_msg = strdup(dlerror());
	}
	return handle;
	}
	}

	// Check if the library is in NATIVELOADER_DEFAULT_NAMESPACE_LIBS and should
	// be loaded from the kNativeloaderExtraLibs namespace.
	{
	Result<void*> handle = TryLoadNativeloaderExtraLib(path);
	if (!handle.ok()) {
	*error_msg = strdup(handle.error().message().c_str());
	return nullptr;
	}
	if (handle.value() != nullptr) {
	return handle.value();
	}
	}

	// Fall back to the system namespace. This happens for preloaded JNI
	// libraries in the zygote.
	// TODO(b/185833744): Investigate if this should fall back to the app main
	// namespace (aka anonymous namespace) instead.
	void* handle = OpenSystemLibrary(path, RTLD_NOW);
	if (handle == nullptr) {
	*error_msg = strdup(dlerror());
	}
	return handle;
	}

	std::lock_guard<std::mutex> guard(g_namespaces_mutex);
	NativeLoaderNamespace* ns;

	if ((ns = g_namespaces->FindNamespaceByClassLoader(env, class_loader)) == nullptr) {
	// This is the case where the classloader was not created by ApplicationLoaders
	// In this case we create an isolated not-shared namespace for it.
	Result<NativeLoaderNamespace*> isolated_ns =
	CreateClassLoaderNamespaceLocked(env,
	target_sdk_version,
	class_loader,
	/is_shared=/false,
	/dex_path=/nullptr,
	library_path,
	/permitted_path=/nullptr,
	/uses_library_list=/nullptr);
	if (!isolated_ns.ok()) {
	*error_msg = strdup(isolated_ns.error().message().c_str());
	return nullptr;
	} else {
	ns = *isolated_ns;
	}
	}

	return OpenNativeLibraryInNamespace(ns, path, needs_native_bridge, error_msg);
	#else
	UNUSED(env, target_sdk_version, class_loader, caller_location);

	// Do some best effort to emulate library-path support. It will not
	// work for dependencies.
	//
	// Note: null has a special meaning and must be preserved.
	std::string c_library_path; // Empty string by default.
	if (library_path != nullptr && path != nullptr && path[0] != '/') {
	ScopedUtfChars library_path_utf_chars(env, library_path);
	c_library_path = library_path_utf_chars.c_str();
	}

	std::vector<std::string> library_paths = base::Split(c_library_path, ":");

	for (const std::string& lib_path : library_paths) {
	*needs_native_bridge = false;
	const char* path_arg;
	std::string complete_path;
	if (path == nullptr) {
	// Preserve null.
	path_arg = nullptr;
	} else {
	complete_path = lib_path;
	if (!complete_path.empty()) {
	complete_path.append("/");
	}
	complete_path.append(path);
	path_arg = complete_path.c_str();
	}
	void* handle = dlopen(path_arg, RTLD_NOW);
	if (handle != nullptr) {
	return handle;
	}
	if (NativeBridgeIsSupported(path_arg)) {
	*needs_native_bridge = true;
	handle = NativeBridgeLoadLibrary(path_arg, RTLD_NOW);
	if (handle != nullptr) {
	return handle;
	}
	*error_msg = strdup(NativeBridgeGetError());
	} else {
	*error_msg = strdup(dlerror());
	}
	}
	return nullptr;
	#endif
	}

# android_dlopen_ext

android_dlopen_ext 调用了 __loader_android_dlopen_ext

在代码的第四行出现了内建函数 __builtin_return_address(LEVEL) , 这个函数用来返回当前函数或调用者的返回地址。函数的参数 LEVEL 表示函数调用链中的不同层次的函数，各个值代表的意义如下:

0：返回当前函数的返回地址；
1：返回当前函数调用者的返回地址；
2：返回当前函数调用者的调用者的返回地址；

	//android-platform\bionic\libdl\libdl.cpp
	__attribute__((__weak__))
	void* android_dlopen_ext(const char* filename, int flag, const android_dlextinfo* extinfo) {
	const void* caller_addr = __builtin_return_address(0);
	return __loader_android_dlopen_ext(filename, flag, extinfo, caller_addr);
	}

# __loader_android_dlopen_ext

__loader_android_dlopen_ext 调用了 dlopen_ext

	//android-platform\bionic\linker\dlfcn.cpp
	void* __loader_android_dlopen_ext(const char* filename,
	int flags,
	const android_dlextinfo* extinfo,
	const void* caller_addr) {
	return dlopen_ext(filename, flags, extinfo, caller_addr);
	}

# dlopen_ext

dlopen_ext 中调用了 do_dlopen

	//android-platform\bionic\linker\dlfcn.cpp
	static void* dlopen_ext(const char* filename,
	int flags,
	const android_dlextinfo* extinfo,
	const void* caller_addr) {
	ScopedPthreadMutexLocker locker(&g_dl_mutex);
	g_linker_logger.ResetState();
	void* result = do_dlopen(filename, flags, extinfo, caller_addr);
	if (result == nullptr) {
	__bionic_format_dlerror("dlopen failed", linker_get_error_buffer());
	return nullptr;
	}
	return result;
	}

# do_dlopen

这个函数中最为关键的是调用 find_library 获取到了待加载 so 的 soinfo

	//android-platform\bionic\linker\linker.cpp
	void* do_dlopen(const char* name, int flags,
	const android_dlextinfo* extinfo,
	const void* caller_addr) {
	std::string trace_prefix = std::string("dlopen: ") + (name == nullptr ? "(nullptr)" : name);
	ScopedTrace trace(trace_prefix.c_str());
	ScopedTrace loading_trace((trace_prefix + " - loading and linking").c_str());
	soinfo* const caller = find_containing_library(caller_addr);
	android_namespace_t* ns = get_caller_namespace(caller);

	LD_LOG(kLogDlopen,
	"dlopen(name=\"%s\", flags=0x%x, extinfo=%s, caller=\"%s\", caller_ns=%s@%p, targetSdkVersion=%i) ...",
	name,
	flags,
	android_dlextinfo_to_string(extinfo).c_str(),
	caller == nullptr ? "(null)" : caller->get_realpath(),
	ns == nullptr ? "(null)" : ns->get_name(),
	ns,
	get_application_target_sdk_version());

	auto purge_guard = android::base::make_scope_guard([&]() { purge_unused_memory(); });

	auto failure_guard = android::base::make_scope_guard(
	[&]() { LD_LOG(kLogDlopen, "... dlopen failed: %s", linker_get_error_buffer()); });

	// 对 flags 的合法性进行判断
	if ((flags & ~(RTLD_NOW\|RTLD_LAZY\|RTLD_LOCAL\|RTLD_GLOBAL\|RTLD_NODELETE\|RTLD_NOLOAD)) != 0) {
	DL_OPEN_ERR("invalid flags to dlopen: %x", flags);
	return nullptr;
	}

	// 对 extinfo 的合法性进行判断
	if (extinfo != nullptr) {
	if ((extinfo->flags & ~(ANDROID_DLEXT_VALID_FLAG_BITS)) != 0) {
	DL_OPEN_ERR("invalid extended flags to android_dlopen_ext: 0x%" PRIx64, extinfo->flags);
	return nullptr;
	}

	if ((extinfo->flags & ANDROID_DLEXT_USE_LIBRARY_FD) == 0 &&
	(extinfo->flags & ANDROID_DLEXT_USE_LIBRARY_FD_OFFSET) != 0) {
	DL_OPEN_ERR("invalid extended flag combination (ANDROID_DLEXT_USE_LIBRARY_FD_OFFSET without "
	"ANDROID_DLEXT_USE_LIBRARY_FD): 0x%" PRIx64, extinfo->flags);
	return nullptr;
	}

	if ((extinfo->flags & ANDROID_DLEXT_USE_NAMESPACE) != 0) {
	if (extinfo->library_namespace == nullptr) {
	DL_OPEN_ERR("ANDROID_DLEXT_USE_NAMESPACE is set but extinfo->library_namespace is null");
	return nullptr;
	}
	ns = extinfo->library_namespace;
	}
	}

	// Workaround for dlopen(/system/lib/<soname>) when .so is in /apex. http://b/121248172
	// The workaround works only when targetSdkVersion < Q.
	// 当 apk 的 targetSdkVersion<Q 时才会将 /system 路径转换成 /apex 路径 (不太清楚这样做的意义是什么)
	std::string name_to_apex;
	if (translateSystemPathToApexPath(name, &name_to_apex)) {
	const char* new_name = name_to_apex.c_str();
	LD_LOG(kLogDlopen, "dlopen considering translation from %s to APEX path %s",
	name,
	new_name);
	// Some APEXs could be optionally disabled. Only translate the path
	// when the old file is absent and the new file exists.
	// TODO(b/124218500): Re-enable it once app compat issue is resolved
	/*
	if (file_exists(name)) {
	LD_LOG(kLogDlopen, "dlopen %s exists, not translating", name);
	} else
	*/
	if (!file_exists(new_name)) {
	LD_LOG(kLogDlopen, "dlopen %s does not exist, not translating",
	new_name);
	} else {
	LD_LOG(kLogDlopen, "dlopen translation accepted: using %s", new_name);
	name = new_name;
	}
	}
	// End Workaround for dlopen(/system/lib/<soname>) when .so is in /apex.

	std::string asan_name_holder;

	const char* translated_name = name;
	if (g_is_asan && translated_name != nullptr && translated_name[0] == '/') {
	char original_path[PATH_MAX];
	if (realpath(name, original_path) != nullptr) {
	asan_name_holder = std::string(kAsanLibDirPrefix) + original_path;
	if (file_exists(asan_name_holder.c_str())) {
	soinfo* si = nullptr;
	if (find_loaded_library_by_realpath(ns, original_path, true, &si)) {
	PRINT("linker_asan dlopen NOT translating \"%s\" -> \"%s\": library already loaded", name,
	asan_name_holder.c_str());
	} else {
	PRINT("linker_asan dlopen translating \"%s\" -> \"%s\"", name, translated_name);
	translated_name = asan_name_holder.c_str();
	}
	}
	}
	}

	ProtectedDataGuard guard;
	// 重头戏，这里调用了 find_library 获取到了这个 so 的 soinfo
	soinfo* si = find_library(ns, translated_name, flags, extinfo, caller);
	loading_trace.End();

	if (si != nullptr) {
	void* handle = si->to_handle();
	LD_LOG(kLogDlopen,
	"... dlopen calling constructors: realpath=\"%s\", soname=\"%s\", handle=%p",
	si->get_realpath(), si->get_soname(), handle);
	// 调用 call_constructors 函数来加载 so 中的 init 以及 init_array
	si->call_constructors();
	failure_guard.Disable();
	LD_LOG(kLogDlopen,
	"... dlopen successful: realpath=\"%s\", soname=\"%s\", handle=%p",
	si->get_realpath(), si->get_soname(), handle);
	return handle;
	}

	return nullptr;
	}

# soinfo

soinfo 结构体如下所示，可以用在 frida 或者 ida 中

	//IMPORTANT
	//ELF64 启用该宏
	#define __LP64__ 1
	//ELF32 启用该宏
	//#define __work_around_b_24465209__ 1

	/*
	//https://android.googlesource.com/platform/bionic/+/master/linker/Android.bp
	架构为 32 位定义__work_around_b_24465209__宏
	arch: {
	arm: {cflags: ["-D__work_around_b_24465209__"],},
	x86: {cflags: ["-D__work_around_b_24465209__"],},
	}
	*/

	//android-platform\bionic\libc\include\link.h
	#if defined(__LP64__)
	#define ElfW(type) Elf64_ ## type
	#else
	#define ElfW(type) Elf32_ ## type
	#endif

	//android-platform\bionic\linker\linker_common_types.h
	// Android uses RELA for LP64.
	#if defined(__LP64__)
	#define USE_RELA 1
	#endif

	//android-platform\bionic\libc\kernel\uapi\asm-generic\int-ll64.h
	//__signed__-->signed
	typedef signed char __s8;
	typedef unsigned char __u8;
	typedef signed short __s16;
	typedef unsigned short __u16;
	typedef signed int __s32;
	typedef unsigned int __u32;
	typedef signed long long __s64;
	typedef unsigned long long __u64;

	//A12-src\msm-google\include\uapi\linux\elf.h
	/* 32-bit ELF base types. */
	typedef __u32 Elf32_Addr;
	typedef __u16 Elf32_Half;
	typedef __u32 Elf32_Off;
	typedef __s32 Elf32_Sword;
	typedef __u32 Elf32_Word;

	/* 64-bit ELF base types. */
	typedef __u64 Elf64_Addr;
	typedef __u16 Elf64_Half;
	typedef __s16 Elf64_SHalf;
	typedef __u64 Elf64_Off;
	typedef __s32 Elf64_Sword;
	typedef __u32 Elf64_Word;
	typedef __u64 Elf64_Xword;
	typedef __s64 Elf64_Sxword;

	typedef struct dynamic{
	Elf32_Sword d_tag;
	union{
	Elf32_Sword d_val;
	Elf32_Addr d_ptr;
	} d_un;
	} Elf32_Dyn;

	typedef struct {
	Elf64_Sxword d_tag; /* entry tag value */
	union {
	Elf64_Xword d_val;
	Elf64_Addr d_ptr;
	} d_un;
	} Elf64_Dyn;

	typedef struct elf32_rel {
	Elf32_Addr r_offset;
	Elf32_Word r_info;
	} Elf32_Rel;

	typedef struct elf64_rel {
	Elf64_Addr r_offset; /* Location at which to apply the action */
	Elf64_Xword r_info; /* index and type of relocation */
	} Elf64_Rel;

	typedef struct elf32_rela{
	Elf32_Addr r_offset;
	Elf32_Word r_info;
	Elf32_Sword r_addend;
	} Elf32_Rela;

	typedef struct elf64_rela {
	Elf64_Addr r_offset; /* Location at which to apply the action */
	Elf64_Xword r_info; /* index and type of relocation */
	Elf64_Sxword r_addend; /* Constant addend used to compute value */
	} Elf64_Rela;

	typedef struct elf32_sym{
	Elf32_Word st_name;
	Elf32_Addr st_value;
	Elf32_Word st_size;
	unsigned char st_info;
	unsigned char st_other;
	Elf32_Half st_shndx;
	} Elf32_Sym;

	typedef struct elf64_sym {
	Elf64_Word st_name; /* Symbol name, index in string tbl */
	unsigned char st_info; /* Type and binding attributes */
	unsigned char st_other; /* No defined meaning, 0 */
	Elf64_Half st_shndx; /* Associated section index */
	Elf64_Addr st_value; /* Value of the symbol */
	Elf64_Xword st_size; /* Associated symbol size */
	} Elf64_Sym;


	#define EI_NIDENT 16

	typedef struct elf32_hdr{
	unsigned char e_ident[EI_NIDENT];
	Elf32_Half e_type;
	Elf32_Half e_machine;
	Elf32_Word e_version;
	Elf32_Addr e_entry; /* Entry point */
	Elf32_Off e_phoff;
	Elf32_Off e_shoff;
	Elf32_Word e_flags;
	Elf32_Half e_ehsize;
	Elf32_Half e_phentsize;
	Elf32_Half e_phnum;
	Elf32_Half e_shentsize;
	Elf32_Half e_shnum;
	Elf32_Half e_shstrndx;
	} Elf32_Ehdr;

	typedef struct elf64_hdr {
	unsigned char e_ident[EI_NIDENT]; /* ELF "magic number" */
	Elf64_Half e_type;
	Elf64_Half e_machine;
	Elf64_Word e_version;
	Elf64_Addr e_entry; /* Entry point virtual address */
	Elf64_Off e_phoff; /* Program header table file offset */
	Elf64_Off e_shoff; /* Section header table file offset */
	Elf64_Word e_flags;
	Elf64_Half e_ehsize;
	Elf64_Half e_phentsize;
	Elf64_Half e_phnum;
	Elf64_Half e_shentsize;
	Elf64_Half e_shnum;
	Elf64_Half e_shstrndx;
	} Elf64_Ehdr;

	/* These constants define the permissions on sections in the program
	header, p_flags. */
	#define PF_R 0x4
	#define PF_W 0x2
	#define PF_X 0x1

	typedef struct elf32_phdr{
	Elf32_Word p_type;
	Elf32_Off p_offset;
	Elf32_Addr p_vaddr;
	Elf32_Addr p_paddr;
	Elf32_Word p_filesz;
	Elf32_Word p_memsz;
	Elf32_Word p_flags;
	Elf32_Word p_align;
	} Elf32_Phdr;

	typedef struct elf64_phdr {
	Elf64_Word p_type;
	Elf64_Word p_flags;
	Elf64_Off p_offset; /* Segment file offset */
	Elf64_Addr p_vaddr; /* Segment virtual address */
	Elf64_Addr p_paddr; /* Segment physical address */
	Elf64_Xword p_filesz; /* Segment size in file */
	Elf64_Xword p_memsz; /* Segment size in memory */
	Elf64_Xword p_align; /* Segment alignment, file & memory */
	} Elf64_Phdr;

	typedef struct elf32_shdr {
	Elf32_Word sh_name;
	Elf32_Word sh_type;
	Elf32_Word sh_flags;
	Elf32_Addr sh_addr;
	Elf32_Off sh_offset;
	Elf32_Word sh_size;
	Elf32_Word sh_link;
	Elf32_Word sh_info;
	Elf32_Word sh_addralign;
	Elf32_Word sh_entsize;
	} Elf32_Shdr;

	typedef struct elf64_shdr {
	Elf64_Word sh_name; /* Section name, index in string tbl */
	Elf64_Word sh_type; /* Type of section */
	Elf64_Xword sh_flags; /* Miscellaneous section attributes */
	Elf64_Addr sh_addr; /* Section virtual addr at execution */
	Elf64_Off sh_offset; /* Section file offset */
	Elf64_Xword sh_size; /* Size of section in bytes */
	Elf64_Word sh_link; /* Index of another section */
	Elf64_Word sh_info; /* Additional section information */
	Elf64_Xword sh_addralign; /* Section alignment */
	Elf64_Xword sh_entsize; /* Entry size if section holds table */
	} Elf64_Shdr;

	typedef unsigned long uintptr_t;
	struct link_map
	{
	uintptr_t l_addr;
	char * l_name;
	uintptr_t l_ld;
	struct link_map * l_next;
	struct link_map * l_prev;
	};


	//android-platform\bionic\linker\linker_soinfo.h
	typedef void (*linker_dtor_function_t)();
	typedef void (linker_ctor_function_t)(int, char, char*);

	#if defined(__work_around_b_24465209__)
	#define SOINFO_NAME_LEN 128
	#endif

	struct soinfo {
	#if defined(__work_around_b_24465209__)
	char old_name_[SOINFO_NAME_LEN];
	#endif
	const ElfW(Phdr)* phdr;
	size_t phnum;
	#if defined(__work_around_b_24465209__)
	ElfW(Addr) unused0; // DO NOT USE, maintained for compatibility.
	#endif
	ElfW(Addr) base;
	size_t size;

	#if defined(__work_around_b_24465209__)
	uint32_t unused1; // DO NOT USE, maintained for compatibility.
	#endif

	ElfW(Dyn)* dynamic;

	#if defined(__work_around_b_24465209__)
	uint32_t unused2; // DO NOT USE, maintained for compatibility
	uint32_t unused3; // DO NOT USE, maintained for compatibility
	#endif

	soinfo* next;
	uint32_t flags_;

	const char* strtab_;
	ElfW(Sym)* symtab_;

	size_t nbucket_;
	size_t nchain_;
	uint32_t* bucket_;
	uint32_t* chain_;

	#if !defined(__LP64__)
	ElfW(Addr)** unused4; // DO NOT USE, maintained for compatibility
	#endif

	#if defined(USE_RELA)
	ElfW(Rela)* plt_rela_;
	size_t plt_rela_count_;

	ElfW(Rela)* rela_;
	size_t rela_count_;
	#else
	ElfW(Rel)* plt_rel_;
	size_t plt_rel_count_;

	ElfW(Rel)* rel_;
	size_t rel_count_;
	#endif

	linker_ctor_function_t* preinit_array_;
	size_t preinit_array_count_;

	linker_ctor_function_t* init_array_;
	size_t init_array_count_;
	linker_dtor_function_t* fini_array_;
	size_t fini_array_count_;

	linker_ctor_function_t init_func_;
	linker_dtor_function_t fini_func_;


	#if defined(__arm__)
	// ARM EABI section used for stack unwinding.
	uint32_t* ARM_exidx;
	size_t ARM_exidx_count;
	#endif
	size_t ref_count_;

	link_map link_map_head;

	bool constructors_called;

	// When you read a virtual address from the ELF file, add this
	// value to get the corresponding address in the process' address space.
	ElfW(Addr) load_bias;

	#if !defined(__LP64__)
	bool has_text_relocations;
	#endif
	bool has_DT_SYMBOLIC;

	};

# call_constructors

在这个函数中会先加载 init , 在 so 中的函数名一般为 init_proc , 然后加载 init_array 中的函数

	//platform\bionic\linker\linker_soinfo.cpp
	void soinfo::call_constructors() {
	if (constructors_called \|\| g_is_ldd) {
	return;
	}

	// We set constructors_called before actually calling the constructors, otherwise it doesn't
	// protect against recursive constructor calls. One simple example of constructor recursion
	// is the libc debug malloc, which is implemented in libc_malloc_debug_leak.so:
	// 1. The program depends on libc, so libc's constructor is called here.
	// 2. The libc constructor calls dlopen() to load libc_malloc_debug_leak.so.
	// 3. dlopen() calls the constructors on the newly created
	// soinfo for libc_malloc_debug_leak.so.
	// 4. The debug .so depends on libc, so CallConstructors is
	// called again with the libc soinfo. If it doesn't trigger the early-
	// out above, the libc constructor will be called again (recursively!).
	constructors_called = true;
	// 在共享链接库中会忽略 DT_PREINIT_ARRAY
	if (!is_main_executable() && preinit_array_ != nullptr) {
	// The GNU dynamic linker silently ignores these, but we warn the developer.
	PRINT("\"%s\": ignoring DT_PREINIT_ARRAY in shared library!", get_realpath());
	}

	get_children().for_each([] (soinfo* si) {
	si->call_constructors();
	});

	if (!is_linker()) {
	bionic_trace_begin((std::string("calling constructors: ") + get_realpath()).c_str());
	}

	// DT_INIT should be called before DT_INIT_ARRAY if both are present.
	// 首先加载 init, 在 so 中的函数名一般为 init_proc, 然后加载 init_array 中的函数
	call_function("DT_INIT", init_func_, get_realpath());
	call_array("DT_INIT_ARRAY", init_array_, init_array_count_, false, get_realpath());

	if (!is_linker()) {
	bionic_trace_end();
	}
	}

值得注意的是，在共享链接库中 pre_initarray 会被忽略掉，它在 call_pre_init_constructors 中，但假如你用 ndk-build 编译一个可以在 android 上执行的可执行文件，那么这个预初始化函数就不会被忽略啦

	//platform\bionic\linker\linker_soinfo.cpp
	void soinfo::call_pre_init_constructors() {
	if (g_is_ldd) return;

	// DT_PREINIT_ARRAY functions are called before any other constructors for executables,
	// but ignored in a shared library.
	call_array("DT_PREINIT_ARRAY", preinit_array_, preinit_array_count_, false, get_realpath());
	}

# find_library

接下来在 find_library 中调用了 find_libraries

	//android-platform\bionic\linker\linker.cpp
	static soinfo* find_library(android_namespace_t* ns,
	const char* name, int rtld_flags,
	const android_dlextinfo* extinfo,
	soinfo* needed_by) {
	soinfo* si = nullptr;

	// 如果 name 是空的，则为 si 赋值为 somain
	//somain: main process, always the one after libdl_info
	if (name == nullptr) {
	si = solist_get_somain();// 这个函数将会返回 somain;
	} else if (!find_libraries(ns,
	needed_by,
	&name,
	1,
	&si,
	nullptr,
	0,
	rtld_flags,
	extinfo,
	false /* add_as_children */)) {
	if (si != nullptr) {
	soinfo_unload(si);
	}
	return nullptr;
	}

	// 加载 so 成功，so 的引用次数 + 1, 对应了 JavaVMExt::LoadNativeLibrary 中
	//so 加载时这一部分的注释↓
	/*
	Below we dlopen but there is no paired dlclose, this would be necessary if we supported
	class unloading. Libraries will only be unloaded when the reference count (incremented by
	dlopen) becomes zero from dlclose.
	*/
	si->increment_ref_count();

	return si;
	}

# find_libraries

分析了这么久等的就是这个函数！

函数声明:

	//android-platform\bionic\linker\linker.cpp
	/*
	ns 加载的命名空间 = 调用者的命名空间
	start_with 调用者的 soinfo
	library_names 所有加载库名称
	library_names_count 加载库数量
	soinfos 保存加载完成的 soinfo
	ld_preloads 保存预加载库，没有可以为 null
	ld_preloads_count 预加载库数量
	extinfo Android 调用附带
	add_as_children 是否作为 start_with 的子库
	search_linked_namespaces 查询链接命名空间
	namespaces 链接命名空间
	*/
	bool find_libraries(android_namespace_t* ns,
	soinfo* start_with,
	const char* const library_names[],
	size_t library_names_count,
	soinfo* soinfos[],
	std::vector<soinfo> ld_preloads,
	size_t ld_preloads_count,
	int rtld_flags,
	const android_dlextinfo* extinfo,
	bool add_as_children,
	std::vector<android_namespace_t> namespaces)

这个函数可以分为七个部分进行分析

# 准备阶段

这一部分将待加载的 so 添加到 LoadTaskList 加载任务队列中

	// Step 0: prepare.
	std::unordered_map<const soinfo*, ElfReader> readers_map;
	LoadTaskList load_tasks;

	// 可以同时加载多个 so, 但从 find_library 传入的参数看来，library_names_count
	// 的值为 1, 也就是说仅加载一个目标 path 的 so
	for (size_t i = 0; i < library_names_count; ++i) {
	const char* name = library_names[i];
	// 将这个 so push 到 load_tasks 的任务中
	load_tasks.push_back(LoadTask::create(name, start_with, ns, &readers_map));
	}

	// If soinfos array is null allocate one on stack.
	// The array is needed in case of failure; for example
	// when library_names[] = {libone.so, libtwo.so} and libone.so
	// is loaded correctly but libtwo.so failed for some reason.
	// In this case libone.so should be unloaded on return.
	// See also implementation of failure_guard below.

	// 为 soinfos 分配空间
	if (soinfos == nullptr) {
	size_t soinfos_size = sizeof(soinfo)library_names_count;
	soinfos = reinterpret_cast<soinfo**>(alloca(soinfos_size));
	memset(soinfos, 0, soinfos_size);
	}

	// list of libraries to link - see step 2.
	size_t soinfos_count = 0;

	auto scope_guard = android::base::make_scope_guard([&]() {
	for (LoadTask* t : load_tasks) {
	LoadTask::deleter(t);
	}
	});

	ZipArchiveCache zip_archive_cache;
	soinfo_list_t new_global_group_members;

# 寻找依赖库，添加到待加载队列

将待加载的 so 的依赖库添加到 load_tasks 队列中，此时并不会加载依赖库

	// Step 1: expand the list of load_tasks to include
	// all DT_NEEDED libraries (do not load them just yet)
	for (size_t i = 0; i<load_tasks.size(); ++i) {
	LoadTask* task = load_tasks[i];
	soinfo* needed_by = task->get_needed_by();

	bool is_dt_needed = needed_by != nullptr && (needed_by != start_with \|\| add_as_children);
	task->set_extinfo(is_dt_needed ? nullptr : extinfo);
	task->set_dt_needed(is_dt_needed);

	LD_LOG(kLogDlopen, "find_libraries(ns=%s): task=%s, is_dt_needed=%d", ns->get_name(),
	task->get_name(), is_dt_needed);

	// Note: start from the namespace that is stored in the LoadTask. This namespace
	// is different from the current namespace when the LoadTask is for a transitive
	// dependency and the lib that created the LoadTask is not found in the
	// current namespace but in one of the linked namespace.
	if (!find_library_internal(const_cast<android_namespace_t*>(task->get_start_from()),
	task,
	&zip_archive_cache,
	&load_tasks,
	rtld_flags)) {
	return false;
	}

	soinfo* si = task->get_soinfo();

	if (is_dt_needed) {
	needed_by->add_child(si);
	}

	// When ld_preloads is not null, the first
	// ld_preloads_count libs are in fact ld_preloads.
	bool is_ld_preload = false;
	if (ld_preloads != nullptr && soinfos_count < ld_preloads_count) {
	ld_preloads->push_back(si);
	is_ld_preload = true;
	}

	if (soinfos_count < library_names_count) {
	soinfos[soinfos_count++] = si;
	}

	// Add the new global group members to all initial namespaces. Do this secondary namespace setup
	// at the same time that libraries are added to their primary namespace so that the order of
	// global group members is the same in the every namespace. Only add a library to a namespace
	// once, even if it appears multiple times in the dependency graph.
	if (is_ld_preload \|\| (si->get_dt_flags_1() & DF_1_GLOBAL) != 0) {
	if (!si->is_linked() && namespaces != nullptr && !new_global_group_members.contains(si)) {
	new_global_group_members.push_back(si);
	for (auto linked_ns : *namespaces) {
	if (si->get_primary_namespace() != linked_ns) {
	linked_ns->add_soinfo(si);
	si->add_secondary_namespace(linked_ns);
	}
	}
	}
	}
	}

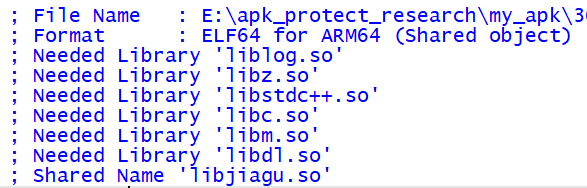

这一步要做的是调用 find_library_internal 获取到这个 so 的依赖库，那么什么是 so 的依赖库呢？我们拿 ida 随便反编译一个 so, Needed Library 开头的就是这一个 so 的所有依赖库

# find_library_internal

这里做了四次对于待加载 so 的依赖库的寻找

调用 find_loaded_library_by_soname 这个库有没有被加载过了？加载过那么我找都不用找了直接返回寻找结果
正常使用 load_library 找依赖库
正常寻找找不到，那这个库是不是已经预置在系统库里面了？试试到全局命名空间 g_default_namespace 里面找找
前三种方式都失败了？启动终极解决方案，到共享命名空间 linked namespace 找这个 so 的依赖库，还没找到那就是真的找不到了

	//android-platform\bionic\linker\linker.cpp
	static bool find_library_internal(android_namespace_t* ns,
	LoadTask* task,
	ZipArchiveCache* zip_archive_cache,
	LoadTaskList* load_tasks,
	int rtld_flags) {
	soinfo* candidate;

	// 如果这个 so 已经被加载过了，就直接给 task 设置完 soinfo 后返回
	if (find_loaded_library_by_soname(ns, task->get_name(), true /* search_linked_namespaces */,
	&candidate)) {
	LD_LOG(kLogDlopen,
	"find_library_internal(ns=%s, task=%s): Already loaded (by soname): %s",
	ns->get_name(), task->get_name(), candidate->get_realpath());
	task->set_soinfo(candidate);
	return true;
	}

	// Library might still be loaded, the accurate detection
	// of this fact is done by load_library.
	TRACE("[ \"%s\" find_loaded_library_by_soname failed (*candidate=%s@%p). Trying harder... ]",
	task->get_name(), candidate == nullptr ? "n/a" : candidate->get_realpath(), candidate);

	// 关键函数，用来寻找依赖库
	if (load_library(ns, task, zip_archive_cache, load_tasks, rtld_flags,
	true /* search_linked_namespaces */)) {
	return true;
	}

	// TODO(dimitry): workaround for http://b/26394120 (the exempt-list)
	//exempt lib, 即已经预置在系统库中的 so, 例如 libcrypto.so,libssl.so
	// 等等比较著名的库，假如发现是这些库的话，用默认命名空间获取 soinfo
	if (ns->is_exempt_list_enabled() && is_exempt_lib(ns, task->get_name(), task->get_needed_by())) {
	// For the libs in the exempt-list, switch to the default namespace and then
	// try the load again from there. The library could be loaded from the
	// default namespace or from another namespace (e.g. runtime) that is linked
	// from the default namespace.
	LD_LOG(kLogDlopen,
	"find_library_internal(ns=%s, task=%s): Exempt system library - trying namespace %s",
	ns->get_name(), task->get_name(), g_default_namespace.get_name());
	ns = &g_default_namespace;
	if (load_library(ns, task, zip_archive_cache, load_tasks, rtld_flags,
	true /* search_linked_namespaces */)) {
	return true;
	}
	}
	// END OF WORKAROUND

	// if a library was not found - look into linked namespaces
	// preserve current dlerror in the case it fails.
	// 假如找遍了自己的命名空间还是没找到这个 so 的依赖库的话，就去共享命名空间 (linked namespace)
	// 里面去找找看
	DlErrorRestorer dlerror_restorer;
	LD_LOG(kLogDlopen, "find_library_internal(ns=%s, task=%s): Trying %zu linked namespaces",
	ns->get_name(), task->get_name(), ns->linked_namespaces().size());
	for (auto& linked_namespace : ns->linked_namespaces()) {
	if (find_library_in_linked_namespace(linked_namespace, task)) {
	// Library is already loaded.
	if (task->get_soinfo() != nullptr) {
	// n.b. This code path runs when find_library_in_linked_namespace found an already-loaded
	// library by soname. That should only be possible with a exempt-list lookup, where we
	// switch the namespace, because otherwise, find_library_in_linked_namespace is duplicating
	// the soname scan done in this function's first call to find_loaded_library_by_soname.
	return true;
	}

	if (load_library(linked_namespace.linked_namespace(), task, zip_archive_cache, load_tasks,
	rtld_flags, false /* search_linked_namespaces */)) {
	LD_LOG(kLogDlopen, "find_library_internal(ns=%s, task=%s): Found in linked namespace %s",
	ns->get_name(), task->get_name(), linked_namespace.linked_namespace()->get_name());
	return true;
	}
	}
	}

	return false;
	}

# load_library

函数声明:

	//android-platform\bionic\linker\linker.cpp
	static bool load_library(android_namespace_t* ns,
	LoadTask* task,
	ZipArchiveCache* zip_archive_cache,
	LoadTaskList* load_tasks,
	int rtld_flags,
	bool search_linked_namespaces);

在这个函数中，首先判断 extinfo->flags 是否是 ANDROID_DLEXT_USE_LIBRARY_FD , 如果同时有 ANDROID_DLEXT_USE_LIBRARY_FD_OFFSET , 标志在 Android 官网的解释如下

那这样就方便了，假如已经有了这个 library 的 fd 文件描述符，那直接拿过来用就可以了

但是我们待加载的 so 的 extinfo->flags 已经在 android::OpenNativeLibrary 中被定义为 ANDROID_DLEXT_USE_NAMESPACE 了，这个标志的含义在上图中也有给出，所以很遗憾，这个 if 语句中的代码并不会被执行

那么为什么要特意在此处加入这个 if 语句呢？

我的理解是为了提高运行的效率，有一些底层的库已经打开过，加载过了，那么就完全没有必要再打开，搜索一次，直接把 library 的 fd 文件描述符拿过来用就可以了

	const char* name = task->get_name();
	soinfo* needed_by = task->get_needed_by();
	const android_dlextinfo* extinfo = task->get_extinfo();

	// 如果 extinfo->flags 的标记是 ANDROID_DLEXT_USE_LIBRARY_FD, 则直接通过
	//fd 文件描述符来打开
	if (extinfo != nullptr && (extinfo->flags & ANDROID_DLEXT_USE_LIBRARY_FD) != 0) {
	off64_t file_offset = 0;
	if ((extinfo->flags & ANDROID_DLEXT_USE_LIBRARY_FD_OFFSET) != 0) {
	file_offset = extinfo->library_fd_offset;
	}

	std::string realpath;
	if (!realpath_fd(extinfo->library_fd, &realpath)) {
	if (!is_first_stage_init()) {
	PRINT(
	"warning: unable to get realpath for the library \"%s\" by extinfo->library_fd. "
	"Will use given name.",
	name);
	}
	realpath = name;
	}

	task->set_fd(extinfo->library_fd, false);
	task->set_file_offset(file_offset);
	return load_library(ns, task, load_tasks, rtld_flags, realpath, search_linked_namespaces);
	}

之后，我们千辛万苦终于看到了这对于待加载的 so 的第一个操作，调用 open_library 打开它

	// Open the file.
	off64_t file_offset;
	std::string realpath;
	int fd = open_library(ns, zip_archive_cache, name, needed_by, &file_offset, &realpath);
	// 如果打开 so 失败，寻找失败原因
	if (fd == -1) {
	if (task->is_dt_needed()) {
	if (needed_by->is_main_executable()) {
	DL_OPEN_ERR("library \"%s\" not found: needed by main executable", name);
	} else {
	DL_OPEN_ERR("library \"%s\" not found: needed by %s in namespace %s", name,
	needed_by->get_realpath(), task->get_start_from()->get_name());
	}
	} else {
	DL_OPEN_ERR("library \"%s\" not found", name);
	}
	return false;
	}

	//set fd and file_offset
	task->set_fd(fd, true);
	task->set_file_offset(file_offset);

我们知道 System.load 需要指定待加载的 so 的绝对路径，这在 open_library 中便符合第一个 if 语句，所以接下来将会调用 open_library_at_path

	static int open_library(android_namespace_t* ns,
	ZipArchiveCache* zip_archive_cache,
	const char* name, soinfo *needed_by,
	off64_t* file_offset, std::string* realpath) {
	TRACE("[ opening %s from namespace %s ]", name, ns->get_name());

	// If the name contains a slash, we should attempt to open it directly and not search the paths.
	// 有斜杠，说明是绝对路径打开的
	if (strchr(name, '/') != nullptr) {
	return open_library_at_path(zip_archive_cache, name, file_offset, realpath);
	}

	// LD_LIBRARY_PATH has the highest priority. We don't have to check accessibility when searching
	// the namespace's path lists, because anything found on a namespace path list should always be
	// accessible.
	int fd = open_library_on_paths(zip_archive_cache, name, file_offset, ns->get_ld_library_paths(), realpath);

	// Try the DT_RUNPATH, and verify that the library is accessible.
	if (fd == -1 && needed_by != nullptr) {
	fd = open_library_on_paths(zip_archive_cache, name, file_offset, needed_by->get_dt_runpath(), realpath);
	if (fd != -1 && !ns->is_accessible(*realpath)) {
	close(fd);
	fd = -1;
	}
	}

	// Finally search the namespace's main search path list.
	if (fd == -1) {
	fd = open_library_on_paths(zip_archive_cache, name, file_offset, ns->get_default_library_paths(), realpath);
	}

	return fd;
	}

在 open_library_at_path 中才算是真正的使用 open 函数打开了这个 so, 并返回文件描述符 fd , 传入的两个标志的含义分别为

O_RDONLY 表示以只读方式打开文件。
O_CLOEXEC 表示在 exec 族函数 (execl, execlp, execle, execv, execvp, execvpe) 调用后，将自动关闭文件描述符

	static int open_library_at_path(ZipArchiveCache* zip_archive_cache,
	const char* path, off64_t* file_offset,
	std::string* realpath) {
	int fd = -1;
	// 如果路径中包含 "!/", 则通过 zipfile 打开库
	if (strstr(path, kZipFileSeparator) != nullptr) {
	fd = open_library_in_zipfile(zip_archive_cache, path, file_offset, realpath);
	}

	if (fd == -1) {
	fd = TEMP_FAILURE_RETRY(open(path, O_RDONLY \| O_CLOEXEC));
	if (fd != -1) {
	*file_offset = 0;
	if (!realpath_fd(fd, realpath)) {
	if (!is_first_stage_init()) {
	PRINT("warning: unable to get realpath for the library \"%s\". Will use given path.",
	path);
	}
	*realpath = path;
	}
	}
	}

	return fd;
	}

成功的打开了这个 so 之后，那就要开始解析这个 so 咯，看看 load_library 最终 return 的啥？竟然还是 load_library ! 不过细看第三个参数，怎么感觉类型不是 ZipArchiveCache* 呢

return load_library(ns, task, load_tasks, rtld_flags, realpath, search_linked_namespaces);

找找函数的声明，原来 load_library 还有一个重载函数，它的第三个参数的类型就是 LoadTaskList*

此 load_library 函数的完整代码如下

	//android-platform\bionic\linker\linker.cpp
	static bool load_library(android_namespace_t* ns,
	LoadTask* task,
	ZipArchiveCache* zip_archive_cache,
	LoadTaskList* load_tasks,
	int rtld_flags,
	bool search_linked_namespaces) {
	const char* name = task->get_name();
	soinfo* needed_by = task->get_needed_by();
	const android_dlextinfo* extinfo = task->get_extinfo();

	// 如果 extinfo->flags 的标记是 ANDROID_DLEXT_USE_LIBRARY_FD, 则直接通过
	//fd 文件描述符来打开
	if (extinfo != nullptr && (extinfo->flags & ANDROID_DLEXT_USE_LIBRARY_FD) != 0) {
	off64_t file_offset = 0;
	if ((extinfo->flags & ANDROID_DLEXT_USE_LIBRARY_FD_OFFSET) != 0) {
	file_offset = extinfo->library_fd_offset;
	}

	std::string realpath;
	if (!realpath_fd(extinfo->library_fd, &realpath)) {
	if (!is_first_stage_init()) {
	PRINT(
	"warning: unable to get realpath for the library \"%s\" by extinfo->library_fd. "
	"Will use given name.",
	name);
	}
	realpath = name;
	}

	task->set_fd(extinfo->library_fd, false);
	task->set_file_offset(file_offset);
	return load_library(ns, task, load_tasks, rtld_flags, realpath, search_linked_namespaces);
	}

	LD_LOG(kLogDlopen,
	"load_library(ns=%s, task=%s, flags=0x%x, search_linked_namespaces=%d): calling "
	"open_library",
	ns->get_name(), name, rtld_flags, search_linked_namespaces);

	// Open the file.
	off64_t file_offset;
	std::string realpath;
	int fd = open_library(ns, zip_archive_cache, name, needed_by, &file_offset, &realpath);
	// 如果打开 so 失败，寻找失败原因
	if (fd == -1) {
	if (task->is_dt_needed()) {
	if (needed_by->is_main_executable()) {
	DL_OPEN_ERR("library \"%s\" not found: needed by main executable", name);
	} else {
	DL_OPEN_ERR("library \"%s\" not found: needed by %s in namespace %s", name,
	needed_by->get_realpath(), task->get_start_from()->get_name());
	}
	} else {
	DL_OPEN_ERR("library \"%s\" not found", name);
	}
	return false;
	}

	//set fd and file_offset
	task->set_fd(fd, true);
	task->set_file_offset(file_offset);

	return load_library(ns, task, load_tasks, rtld_flags, realpath, search_linked_namespaces);
	}

# 重载的 load_library

函数声明:

	//android-platform\bionic\linker\linker.cpp
	static bool load_library(android_namespace_t* ns,
	LoadTask* task,
	LoadTaskList* load_tasks,
	int rtld_flags,
	const std::string& realpath,
	bool search_linked_namespaces);

这个函数的开头做了一大堆参数合法性的检查，随后终于开始解析 so 了，其关键函数为 task->read(realpath.c_str(), file_stat.st_size)

	soinfo* si = soinfo_alloc(ns, realpath.c_str(), &file_stat, file_offset, rtld_flags);

	task->set_soinfo(si);

	// Read the ELF header and some of the segments.
	if (!task->read(realpath.c_str(), file_stat.st_size)) {
	task->remove_cached_elf_reader();
	task->set_soinfo(nullptr);
	soinfo_free(si);
	return false;
	}

	// Find and set DT_RUNPATH, DT_SONAME, and DT_FLAGS_1.
	// Note that these field values are temporary and are
	// going to be overwritten on soinfo::prelink_image
	// with values from PT_LOAD segments.
	const ElfReader& elf_reader = task->get_elf_reader();
	for (const ElfW(Dyn)* d = elf_reader.dynamic(); d->d_tag != DT_NULL; ++d) {
	if (d->d_tag == DT_RUNPATH) {
	si->set_dt_runpath(elf_reader.get_string(d->d_un.d_val));
	}
	if (d->d_tag == DT_SONAME) {
	si->set_soname(elf_reader.get_string(d->d_un.d_val));
	}
	// We need to identify a DF_1_GLOBAL library early so we can link it to namespaces.
	if (d->d_tag == DT_FLAGS_1) {
	si->set_dt_flags_1(d->d_un.d_val);
	}
	}

	for_each_dt_needed(task->get_elf_reader(), [&](const char* name) {
	LD_LOG(kLogDlopen, "load_library(ns=%s, task=%s): Adding DT_NEEDED task: %s",
	ns->get_name(), task->get_name(), name);
	load_tasks->push_back(LoadTask::create(name, si, ns, task->get_readers_map()));
	});

LoadTask::read

初始化了一个 ElfReader , 随后调用 elf_reader.Read 正式开始读取

	//android-platform\bionic\linker\linker.cpp
	bool read(const char* realpath, off64_t file_size) {
	ElfReader& elf_reader = get_elf_reader();
	return elf_reader.Read(realpath, fd_, file_offset_, file_size);
	}

ElfReader::Read

兜兜转转了那么久，终于看到了这个亲切又熟悉的函数了！！

关于这个函数的更多分析请参考 ELF 结构分析及 ElfReader

	//android-platform\bionic\linker\linker_phdr.cpp
	bool ElfReader::Read(const char* name, int fd, off64_t file_offset, off64_t file_size) {
	if (did_read_) {
	return true;
	}
	name_ = name;
	fd_ = fd;
	file_offset_ = file_offset;
	file_size_ = file_size;

	if (ReadElfHeader() &&
	VerifyElfHeader() &&
	ReadProgramHeaders() &&
	ReadSectionHeaders() &&
	ReadDynamicSection()) {
	did_read_ = true;
	}

	return did_read_;
	}

在获取到待加载的 so 的各个段的结构之后，接下来就是解析 .dynamic 中保存的符号

	//android-platform\bionic\linker\linker.cpp
	// Find and set DT_RUNPATH, DT_SONAME, and DT_FLAGS_1.
	// Note that these field values are temporary and are
	// going to be overwritten on soinfo::prelink_image
	// with values from PT_LOAD segments.
	const ElfReader& elf_reader = task->get_elf_reader();
	for (const ElfW(Dyn)* d = elf_reader.dynamic(); d->d_tag != DT_NULL; ++d) {
	if (d->d_tag == DT_RUNPATH) {
	si->set_dt_runpath(elf_reader.get_string(d->d_un.d_val));
	}
	if (d->d_tag == DT_SONAME) {
	si->set_soname(elf_reader.get_string(d->d_un.d_val));
	}
	// We need to identify a DF_1_GLOBAL library early so we can link it to namespaces.
	if (d->d_tag == DT_FLAGS_1) {
	si->set_dt_flags_1(d->d_un.d_val);
	}
	}

之后找到待加载的 so 的依赖库，这里有一个模板函数 for_each_dt_needed , 找到 .dynamic 中所有带有 DT_NEEDED 标志的字符串，这些字符串的名称就是这个 so 所需要的依赖库，然后将它们添加到 load_tasks 队列中

	//android-platform\bionic\linker\linker.cpp
	for_each_dt_needed(task->get_elf_reader(), [&](const char* name) {
	LD_LOG(kLogDlopen, "load_library(ns=%s, task=%s): Adding DT_NEEDED task: %s",
	ns->get_name(), task->get_name(), name);
	load_tasks->push_back(LoadTask::create(name, si, ns, task->get_readers_map()));
	});

	//android-platform\bionic\linker\linker_soinfo.h
	template<typename F>
	void for_each_dt_needed(const soinfo* si, F action) {
	for (const ElfW(Dyn)* d = si->dynamic; d->d_tag != DT_NULL; ++d) {
	if (d->d_tag == DT_NEEDED) {
	action(fix_dt_needed(si->get_string(d->d_un.d_val), si->get_realpath()));
	}
	}
	}

# 乱序加载库

乱序加载的原因如下，看上去是为了抵御攻击

ld.so(1) on ELF platforms now loads libraries in a random order for greater resistance to attacks

	// Step 2: Load libraries in random order (see b/24047022)
	LoadTaskList load_list;
	for (auto&& task : load_tasks) {
	soinfo* si = task->get_soinfo();
	auto pred = [&](const LoadTask* t) {
	return t->get_soinfo() == si;
	};

	if (!si->is_linked() &&
	std::find_if(load_list.begin(), load_list.end(), pred) == load_list.end() ) {
	load_list.push_back(task);
	}
	}
	bool reserved_address_recursive = false;
	if (extinfo) {
	reserved_address_recursive = extinfo->flags & ANDROID_DLEXT_RESERVED_ADDRESS_RECURSIVE;
	}
	if (!reserved_address_recursive) {
	// Shuffle the load order in the normal case, but not if we are loading all
	// the libraries to a reserved address range.
	shuffle(&load_list);
	}

	// Set up address space parameters.
	address_space_params extinfo_params, default_params;
	size_t relro_fd_offset = 0;
	if (extinfo) {
	if (extinfo->flags & ANDROID_DLEXT_RESERVED_ADDRESS) {
	extinfo_params.start_addr = extinfo->reserved_addr;
	extinfo_params.reserved_size = extinfo->reserved_size;
	extinfo_params.must_use_address = true;
	} else if (extinfo->flags & ANDROID_DLEXT_RESERVED_ADDRESS_HINT) {
	extinfo_params.start_addr = extinfo->reserved_addr;
	extinfo_params.reserved_size = extinfo->reserved_size;
	}
	}

	for (auto&& task : load_list) {
	address_space_params* address_space =
	(reserved_address_recursive \|\| !task->is_dt_needed()) ? &extinfo_params : &default_params;
	// 加载所有的库，包括待加载的 so
	if (!task->load(address_space)) {
	return false;
	}
	}

load 函数就是将 ELF 的相关结构的值赋值给 si_ , 其中我们可以看到比较重要的字段有 phdr_count , loaded_phdr

	bool load(address_space_params* address_space) {
	ElfReader& elf_reader = get_elf_reader();
	if (!elf_reader.Load(address_space)) {
	return false;
	}

	si_->base = elf_reader.load_start();
	si_->size = elf_reader.load_size();
	si_->set_mapped_by_caller(elf_reader.is_mapped_by_caller());
	si_->load_bias = elf_reader.load_bias();
	si_->phnum = elf_reader.phdr_count();
	si_->phdr = elf_reader.loaded_phdr();
	si_->set_gap_start(elf_reader.gap_start());
	si_->set_gap_size(elf_reader.gap_size());

	return true;
	}

# 预链接解析所有依赖库

	// Step 3: pre-link all DT_NEEDED libraries in breadth first order.
	for (auto&& task : load_tasks) {
	soinfo* si = task->get_soinfo();
	if (!si->is_linked() && !si->prelink_image()) {
	return false;
	}
	register_soinfo_tls(si);
	}

这里我们看到调用了 prelink_image 来预链接依赖库，主要是遍历 .dynamic 节，来提取必要的信息例如 strtab_ , symtab_ , plt_rela_ , init_array_ 等等各种必要的信息

	bool soinfo::prelink_image() {
	if (flags_ & FLAG_PRELINKED) return true;
	/* Extract dynamic section */
	ElfW(Word) dynamic_flags = 0;
	// 提取动态节（dynamic section）
	phdr_table_get_dynamic_section(phdr, phnum, load_bias, &dynamic, &dynamic_flags);

	/* We can't log anything until the linker is relocated */
	bool relocating_linker = (flags_ & FLAG_LINKER) != 0;
	if (!relocating_linker) {
	INFO("[ Linking \"%s\" ]", get_realpath());
	DEBUG("si->base = %p si->flags = 0x%08x", reinterpret_cast<void*>(base), flags_);
	}

	if (dynamic == nullptr) {
	if (!relocating_linker) {
	DL_ERR("missing PT_DYNAMIC in \"%s\"", get_realpath());
	}
	return false;
	} else {
	if (!relocating_linker) {
	DEBUG("dynamic = %p", dynamic);
	}
	}

	#if defined(__arm__)
	(void) phdr_table_get_arm_exidx(phdr, phnum, load_bias,
	&ARM_exidx, &ARM_exidx_count);
	#endif

	TlsSegment tls_segment;
	if (__bionic_get_tls_segment(phdr, phnum, load_bias, &tls_segment)) {
	if (!__bionic_check_tls_alignment(&tls_segment.alignment)) {
	if (!relocating_linker) {
	DL_ERR("TLS segment alignment in \"%s\" is not a power of 2: %zu",
	get_realpath(), tls_segment.alignment);
	}
	return false;
	}
	tls_ = std::make_unique<soinfo_tls>();
	tls_->segment = tls_segment;
	}

	// Extract useful information from dynamic section.
	// Note that: "Except for the DT_NULL element at the end of the array,
	// and the relative order of DT_NEEDED elements, entries may appear in any order."
	//
	// source: http://www.sco.com/developers/gabi/1998-04-29/ch5.dynamic.html
	uint32_t needed_count = 0;
	// 循环遍历每个动态节，并根据 d_tag 为对应节做相应的处理
	for (ElfW(Dyn)* d = dynamic; d->d_tag != DT_NULL; ++d) {
	DEBUG("d = %p, d[0](tag) = %p d[1](val) = %p",
	d, reinterpret_cast<void>(d->d_tag), reinterpret_cast<void>(d->d_un.d_val));
	switch (d->d_tag) {
	case DT_SONAME:
	// this is parsed after we have strtab initialized (see below).
	break;

	case DT_HASH:
	nbucket_ = reinterpret_cast<uint32_t*>(load_bias + d->d_un.d_ptr)[0];
	nchain_ = reinterpret_cast<uint32_t*>(load_bias + d->d_un.d_ptr)[1];
	bucket_ = reinterpret_cast<uint32_t*>(load_bias + d->d_un.d_ptr + 8);
	chain_ = reinterpret_cast<uint32_t>(load_bias + d->d_un.d_ptr + 8 + nbucket_ 4);
	break;

	case DT_GNU_HASH:
	gnu_nbucket_ = reinterpret_cast<uint32_t*>(load_bias + d->d_un.d_ptr)[0];
	// skip symndx
	gnu_maskwords_ = reinterpret_cast<uint32_t*>(load_bias + d->d_un.d_ptr)[2];
	gnu_shift2_ = reinterpret_cast<uint32_t*>(load_bias + d->d_un.d_ptr)[3];

	gnu_bloom_filter_ = reinterpret_cast<ElfW(Addr)*>(load_bias + d->d_un.d_ptr + 16);
	gnu_bucket_ = reinterpret_cast<uint32_t*>(gnu_bloom_filter_ + gnu_maskwords_);
	// amend chain for symndx = header[1]
	gnu_chain_ = gnu_bucket_ + gnu_nbucket_ -
	reinterpret_cast<uint32_t*>(load_bias + d->d_un.d_ptr)[1];

	if (!powerof2(gnu_maskwords_)) {
	DL_ERR("invalid maskwords for gnu_hash = 0x%x, in \"%s\" expecting power to two",
	gnu_maskwords_, get_realpath());
	return false;
	}
	--gnu_maskwords_;

	flags_ \|= FLAG_GNU_HASH;
	break;

	case DT_STRTAB:
	strtab_ = reinterpret_cast<const char*>(load_bias + d->d_un.d_ptr);
	break;

	case DT_STRSZ:
	strtab_size_ = d->d_un.d_val;
	break;

	case DT_SYMTAB:
	symtab_ = reinterpret_cast<ElfW(Sym)*>(load_bias + d->d_un.d_ptr);
	break;

	case DT_SYMENT:
	if (d->d_un.d_val != sizeof(ElfW(Sym))) {
	DL_ERR("invalid DT_SYMENT: %zd in \"%s\"",
	static_cast<size_t>(d->d_un.d_val), get_realpath());
	return false;
	}
	break;

	case DT_PLTREL:
	#if defined(USE_RELA)
	if (d->d_un.d_val != DT_RELA) {
	DL_ERR("unsupported DT_PLTREL in \"%s\"; expected DT_RELA", get_realpath());
	return false;
	}
	#else
	if (d->d_un.d_val != DT_REL) {
	DL_ERR("unsupported DT_PLTREL in \"%s\"; expected DT_REL", get_realpath());
	return false;
	}
	#endif
	break;

	case DT_JMPREL:
	#if defined(USE_RELA)
	plt_rela_ = reinterpret_cast<ElfW(Rela)*>(load_bias + d->d_un.d_ptr);
	#else
	plt_rel_ = reinterpret_cast<ElfW(Rel)*>(load_bias + d->d_un.d_ptr);
	#endif
	break;

	case DT_PLTRELSZ:
	#if defined(USE_RELA)
	plt_rela_count_ = d->d_un.d_val / sizeof(ElfW(Rela));
	#else
	plt_rel_count_ = d->d_un.d_val / sizeof(ElfW(Rel));
	#endif
	break;

	case DT_PLTGOT:
	// Ignored (because RTLD_LAZY is not supported).
	break;

	case DT_DEBUG:
	// Set the DT_DEBUG entry to the address of _r_debug for GDB
	// if the dynamic table is writable
	if ((dynamic_flags & PF_W) != 0) {
	d->d_un.d_val = reinterpret_cast<uintptr_t>(&_r_debug);
	}
	break;
	#if defined(USE_RELA)
	case DT_RELA:
	rela_ = reinterpret_cast<ElfW(Rela)*>(load_bias + d->d_un.d_ptr);
	break;

	case DT_RELASZ:
	rela_count_ = d->d_un.d_val / sizeof(ElfW(Rela));
	break;

	case DT_ANDROID_RELA:
	android_relocs_ = reinterpret_cast<uint8_t*>(load_bias + d->d_un.d_ptr);
	break;

	case DT_ANDROID_RELASZ:
	android_relocs_size_ = d->d_un.d_val;
	break;

	case DT_ANDROID_REL:
	DL_ERR("unsupported DT_ANDROID_REL in \"%s\"", get_realpath());
	return false;

	case DT_ANDROID_RELSZ:
	DL_ERR("unsupported DT_ANDROID_RELSZ in \"%s\"", get_realpath());
	return false;

	case DT_RELAENT:
	if (d->d_un.d_val != sizeof(ElfW(Rela))) {
	DL_ERR("invalid DT_RELAENT: %zd", static_cast<size_t>(d->d_un.d_val));
	return false;
	}
	break;

	// Ignored (see DT_RELCOUNT comments for details).
	case DT_RELACOUNT:
	break;

	case DT_REL:
	DL_ERR("unsupported DT_REL in \"%s\"", get_realpath());
	return false;

	case DT_RELSZ:
	DL_ERR("unsupported DT_RELSZ in \"%s\"", get_realpath());
	return false;

	#else
	case DT_REL:
	rel_ = reinterpret_cast<ElfW(Rel)*>(load_bias + d->d_un.d_ptr);
	break;

	case DT_RELSZ:
	rel_count_ = d->d_un.d_val / sizeof(ElfW(Rel));
	break;

	case DT_RELENT:
	if (d->d_un.d_val != sizeof(ElfW(Rel))) {
	DL_ERR("invalid DT_RELENT: %zd", static_cast<size_t>(d->d_un.d_val));
	return false;
	}
	break;

	case DT_ANDROID_REL:
	android_relocs_ = reinterpret_cast<uint8_t*>(load_bias + d->d_un.d_ptr);
	break;

	case DT_ANDROID_RELSZ:
	android_relocs_size_ = d->d_un.d_val;
	break;

	case DT_ANDROID_RELA:
	DL_ERR("unsupported DT_ANDROID_RELA in \"%s\"", get_realpath());
	return false;

	case DT_ANDROID_RELASZ:
	DL_ERR("unsupported DT_ANDROID_RELASZ in \"%s\"", get_realpath());
	return false;

	// "Indicates that all RELATIVE relocations have been concatenated together,
	// and specifies the RELATIVE relocation count."
	//
	// TODO: Spec also mentions that this can be used to optimize relocation process;
	// Not currently used by bionic linker - ignored.
	case DT_RELCOUNT:
	break;

	case DT_RELA:
	DL_ERR("unsupported DT_RELA in \"%s\"", get_realpath());
	return false;

	case DT_RELASZ:
	DL_ERR("unsupported DT_RELASZ in \"%s\"", get_realpath());
	return false;

	#endif
	case DT_RELR:
	case DT_ANDROID_RELR:
	relr_ = reinterpret_cast<ElfW(Relr)*>(load_bias + d->d_un.d_ptr);
	break;

	case DT_RELRSZ:
	case DT_ANDROID_RELRSZ:
	relr_count_ = d->d_un.d_val / sizeof(ElfW(Relr));
	break;

	case DT_RELRENT:
	case DT_ANDROID_RELRENT:
	if (d->d_un.d_val != sizeof(ElfW(Relr))) {
	DL_ERR("invalid DT_RELRENT: %zd", static_cast<size_t>(d->d_un.d_val));
	return false;
	}
	break;

	// Ignored (see DT_RELCOUNT comments for details).
	// There is no DT_RELRCOUNT specifically because it would only be ignored.
	case DT_ANDROID_RELRCOUNT:
	break;

	case DT_INIT:
	init_func_ = reinterpret_cast<linker_ctor_function_t>(load_bias + d->d_un.d_ptr);
	DEBUG("%s constructors (DT_INIT) found at %p", get_realpath(), init_func_);
	break;

	case DT_FINI:
	fini_func_ = reinterpret_cast<linker_dtor_function_t>(load_bias + d->d_un.d_ptr);
	DEBUG("%s destructors (DT_FINI) found at %p", get_realpath(), fini_func_);
	break;

	case DT_INIT_ARRAY:
	init_array_ = reinterpret_cast<linker_ctor_function_t*>(load_bias + d->d_un.d_ptr);
	DEBUG("%s constructors (DT_INIT_ARRAY) found at %p", get_realpath(), init_array_);
	break;

	case DT_INIT_ARRAYSZ:
	init_array_count_ = static_cast<uint32_t>(d->d_un.d_val) / sizeof(ElfW(Addr));
	break;

	case DT_FINI_ARRAY:
	fini_array_ = reinterpret_cast<linker_dtor_function_t*>(load_bias + d->d_un.d_ptr);
	DEBUG("%s destructors (DT_FINI_ARRAY) found at %p", get_realpath(), fini_array_);
	break;

	case DT_FINI_ARRAYSZ:
	fini_array_count_ = static_cast<uint32_t>(d->d_un.d_val) / sizeof(ElfW(Addr));
	break;

	case DT_PREINIT_ARRAY:
	preinit_array_ = reinterpret_cast<linker_ctor_function_t*>(load_bias + d->d_un.d_ptr);
	DEBUG("%s constructors (DT_PREINIT_ARRAY) found at %p", get_realpath(), preinit_array_);
	break;

	case DT_PREINIT_ARRAYSZ:
	preinit_array_count_ = static_cast<uint32_t>(d->d_un.d_val) / sizeof(ElfW(Addr));
	break;

	case DT_TEXTREL:
	#if defined(__LP64__)
	DL_ERR("\"%s\" has text relocations", get_realpath());
	return false;
	#else
	has_text_relocations = true;
	break;
	#endif

	case DT_SYMBOLIC:
	has_DT_SYMBOLIC = true;
	break;

	case DT_NEEDED:
	++needed_count;
	break;

	case DT_FLAGS:
	if (d->d_un.d_val & DF_TEXTREL) {
	#if defined(__LP64__)
	DL_ERR("\"%s\" has text relocations", get_realpath());
	return false;
	#else
	has_text_relocations = true;
	#endif
	}
	if (d->d_un.d_val & DF_SYMBOLIC) {
	has_DT_SYMBOLIC = true;
	}
	break;

	case DT_FLAGS_1:
	set_dt_flags_1(d->d_un.d_val);

	if ((d->d_un.d_val & ~SUPPORTED_DT_FLAGS_1) != 0) {
	DL_WARN("Warning: \"%s\" has unsupported flags DT_FLAGS_1=%p "
	"(ignoring unsupported flags)",
	get_realpath(), reinterpret_cast<void*>(d->d_un.d_val));
	}
	break;

	// Ignored: "Its use has been superseded by the DF_BIND_NOW flag"
	case DT_BIND_NOW:
	break;

	case DT_VERSYM:
	versym_ = reinterpret_cast<ElfW(Versym)*>(load_bias + d->d_un.d_ptr);
	break;

	case DT_VERDEF:
	verdef_ptr_ = load_bias + d->d_un.d_ptr;
	break;
	case DT_VERDEFNUM:
	verdef_cnt_ = d->d_un.d_val;
	break;

	case DT_VERNEED:
	verneed_ptr_ = load_bias + d->d_un.d_ptr;
	break;

	case DT_VERNEEDNUM:
	verneed_cnt_ = d->d_un.d_val;
	break;

	case DT_RUNPATH:
	// this is parsed after we have strtab initialized (see below).
	break;

	case DT_TLSDESC_GOT:
	case DT_TLSDESC_PLT:
	// These DT entries are used for lazy TLSDESC relocations. Bionic
	// resolves everything eagerly, so these can be ignored.
	break;

	#if defined(__aarch64__)
	case DT_AARCH64_BTI_PLT:
	case DT_AARCH64_PAC_PLT:
	case DT_AARCH64_VARIANT_PCS:
	// Ignored: AArch64 processor-specific dynamic array tags.
	break;
	#endif

	default:
	if (!relocating_linker) {
	const char* tag_name;
	if (d->d_tag == DT_RPATH) {
	tag_name = "DT_RPATH";
	} else if (d->d_tag == DT_ENCODING) {
	tag_name = "DT_ENCODING";
	} else if (d->d_tag >= DT_LOOS && d->d_tag <= DT_HIOS) {
	tag_name = "unknown OS-specific";
	} else if (d->d_tag >= DT_LOPROC && d->d_tag <= DT_HIPROC) {
	tag_name = "unknown processor-specific";
	} else {
	tag_name = "unknown";
	}
	DL_WARN("Warning: \"%s\" unused DT entry: %s (type %p arg %p) (ignoring)",
	get_realpath(),
	tag_name,
	reinterpret_cast<void*>(d->d_tag),
	reinterpret_cast<void*>(d->d_un.d_val));
	}
	break;
	}
	}

	DEBUG("si->base = %p, si->strtab = %p, si->symtab = %p",
	reinterpret_cast<void*>(base), strtab_, symtab_);

	// Validity checks.
	if (relocating_linker && needed_count != 0) {
	DL_ERR("linker cannot have DT_NEEDED dependencies on other libraries");
	return false;
	}
	if (nbucket_ == 0 && gnu_nbucket_ == 0) {
	DL_ERR("empty/missing DT_HASH/DT_GNU_HASH in \"%s\" "
	"(new hash type from the future?)", get_realpath());
	return false;
	}
	if (strtab_ == nullptr) {
	DL_ERR("empty/missing DT_STRTAB in \"%s\"", get_realpath());
	return false;
	}
	if (symtab_ == nullptr) {
	DL_ERR("empty/missing DT_SYMTAB in \"%s\"", get_realpath());
	return false;
	}

	// Second pass - parse entries relying on strtab. Skip this while relocating the linker so as to
	// avoid doing heap allocations until later in the linker's initialization.
	if (!relocating_linker) {
	for (ElfW(Dyn)* d = dynamic; d->d_tag != DT_NULL; ++d) {
	switch (d->d_tag) {
	case DT_SONAME:
	set_soname(get_string(d->d_un.d_val));
	break;
	case DT_RUNPATH:
	set_dt_runpath(get_string(d->d_un.d_val));
	break;
	}
	}
	}

	// Before M release, linker was using basename in place of soname. In the case when DT_SONAME is
	// absent some apps stop working because they can't find DT_NEEDED library by soname. This
	// workaround should keep them working. (Applies only for apps targeting sdk version < M.) Make
	// an exception for the main executable, which does not need to have DT_SONAME. The linker has an
	// DT_SONAME but the soname_ field is initialized later on.
	if (soname_.empty() && this != solist_get_somain() && !relocating_linker &&
	get_application_target_sdk_version() < 23) {
	soname_ = basename(realpath_.c_str());
	DL_WARN_documented_change(23, "missing-soname-enforced-for-api-level-23",
	"\"%s\" has no DT_SONAME (will use %s instead)", get_realpath(),
	soname_.c_str());

	// Don't call add_dlwarning because a missing DT_SONAME isn't important enough to show in the UI
	}

	// Validate each library's verdef section once, so we don't have to validate
	// it each time we look up a symbol with a version.
	if (!validate_verdef_section(this)) return false;

	flags_ \|= FLAG_PRELINKED;
	return true;
	}

# 构造全局组

这一步为预链接的依赖库设置 DF_1_GLOBAL 全局标志，来标记这个库在全局组中

	// Step 4: Construct the global group. DF_1_GLOBAL bit is force set for LD_PRELOADed libs because
	// they must be added to the global group. Note: The DF_1_GLOBAL bit for a library is normally set
	// in step 3.
	if (ld_preloads != nullptr) {
	for (auto&& si : *ld_preloads) {
	si->set_dt_flags_1(si->get_dt_flags_1() \| DF_1_GLOBAL);
	}
	}

# 收集 local_groups 的根节点

看注释感觉挺抽象的，感觉是为了保证可以链接到别的 namespace 里面的依赖库

	// Step 5: Collect roots of local_groups.
	// Whenever needed_by->si link crosses a namespace boundary it forms its own local_group.
	// Here we collect new roots to link them separately later on. Note that we need to avoid
	// collecting duplicates. Also the order is important. They need to be linked in the same
	// BFS order we link individual libraries.
	std::vector<soinfo*> local_group_roots;
	if (start_with != nullptr && add_as_children) {
	local_group_roots.push_back(start_with);
	} else {
	CHECK(soinfos_count == 1);
	local_group_roots.push_back(soinfos[0]);
	}

	for (auto&& task : load_tasks) {
	soinfo* si = task->get_soinfo();
	soinfo* needed_by = task->get_needed_by();
	bool is_dt_needed = needed_by != nullptr && (needed_by != start_with \|\| add_as_children);
	android_namespace_t* needed_by_ns =
	is_dt_needed ? needed_by->get_primary_namespace() : ns;

	if (!si->is_linked() && si->get_primary_namespace() != needed_by_ns) {
	auto it = std::find(local_group_roots.begin(), local_group_roots.end(), si);
	LD_LOG(kLogDlopen,
	"Crossing namespace boundary (si=%s@%p, si_ns=%s@%p, needed_by=%s@%p, ns=%s@%p, needed_by_ns=%s@%p) adding to local_group_roots: %s",
	si->get_realpath(),
	si,
	si->get_primary_namespace()->get_name(),
	si->get_primary_namespace(),
	needed_by == nullptr ? "(nullptr)" : needed_by->get_realpath(),
	needed_by,
	ns->get_name(),
	ns,
	needed_by_ns->get_name(),
	needed_by_ns,
	it == local_group_roots.end() ? "yes" : "no");

	if (it == local_group_roots.end()) {
	local_group_roots.push_back(si);
	}
	}
	}

# 链接所有的 local groups

	// Step 6: Link all local groups
	for (auto root : local_group_roots) {
	soinfo_list_t local_group;
	android_namespace_t* local_group_ns = root->get_primary_namespace();

	walk_dependencies_tree(root,
	[&] (soinfo* si) {
	if (local_group_ns->is_accessible(si)) {
	local_group.push_back(si);
	return kWalkContinue;
	} else {
	return kWalkSkip;
	}
	});

	// 获取全局组包含的 soinfo，因为预加载库是一起加载的跟 local_group_ns 是同一个命名空间
	// 所有这里的全局组已经包含了预加载库
	soinfo_list_t global_group = local_group_ns->get_global_group();
	// 将本地组和全局组都添加到 lookup_list 中
	SymbolLookupList lookup_list(global_group, local_group);
	soinfo* local_group_root = local_group.front();

	bool linked = local_group.visit([&](soinfo* si) {
	// Even though local group may contain accessible soinfos from other namespaces
	// we should avoid linking them (because if they are not linked -> they
	// are in the local_group_roots and will be linked later).
	if (!si->is_linked() && si->get_primary_namespace() == local_group_ns) {
	const android_dlextinfo* link_extinfo = nullptr;
	if (si == soinfos[0] \|\| reserved_address_recursive) {
	// Only forward extinfo for the first library unless the recursive
	// flag is set.
	link_extinfo = extinfo;
	}
	if (__libc_shared_globals()->load_hook) {
	__libc_shared_globals()->load_hook(si->load_bias, si->phdr, si->phnum);
	}
	lookup_list.set_dt_symbolic_lib(si->has_DT_SYMBOLIC ? si : nullptr);
	// 调用 link_image 开始进行依赖库的动态链接，重定位等工作
	if (!si->link_image(lookup_list, local_group_root, link_extinfo, &relro_fd_offset) \|\|
	!get_cfi_shadow()->AfterLoad(si, solist_get_head())) {
	return false;
	}
	}

	return true;
	});

	if (!linked) {
	return false;
	}
	}

当把所有的本地组和全局组加入到 lookup_list 中后，就开始调用 si->link_image 来对这些库进行链接的操作

	bool soinfo::link_image(const SymbolLookupList& lookup_list, soinfo* local_group_root,
	const android_dlextinfo* extinfo, size_t* relro_fd_offset) {
	if (is_image_linked()) {
	// already linked.
	return true;
	}

	if (g_is_ldd && !is_main_executable()) {
	async_safe_format_fd(STDOUT_FILENO, "\t%s => %s (%p)\n", get_soname(),
	get_realpath(), reinterpret_cast<void*>(base));
	}

	local_group_root_ = local_group_root;
	if (local_group_root_ == nullptr) {
	local_group_root_ = this;
	}

	if ((flags_ & FLAG_LINKER) == 0 && local_group_root_ == this) {
	target_sdk_version_ = get_application_target_sdk_version();
	}

	...

	// 进行符号的重定位
	if (!relocate(lookup_list)) {
	return false;
	}

	DEBUG("[ finished linking %s ]", get_realpath());

	...
	}

在 soinfo::link_image 中调用了 relocate 去进行符号的重定位

	//android-platform\bionic\linker\linker_relocate.cpp
	bool soinfo::relocate(const SymbolLookupList& lookup_list) {

	VersionTracker version_tracker;

	if (!version_tracker.init(this)) {
	return false;
	}

	Relocator relocator(version_tracker, lookup_list);
	relocator.si = this;
	//`.strtab` 节保存的是符号字符串表，表中的内容会被 `.symtab` 的 `ElfN_Sym` 结构中的 `st_name` 引用
	relocator.si_strtab = strtab_;
	relocator.si_strtab_size = has_min_version(1) ? strtab_size_ : SIZE_MAX;
	//`.symtab` 节是一个 `ElfN_Sym` 的数组，保存了符号信息
	relocator.si_symtab = symtab_;
	relocator.tlsdesc_args = &tlsdesc_args_;
	relocator.tls_tp_base = __libc_shared_globals()->static_tls_layout.offset_thread_pointer();

	////android_relocs_在 prelink_image () 中设置，动态节有 DT_ANDROID_REL 才会设置
	if (android_relocs_ != nullptr) {
	// check signature
	if (android_relocs_size_ > 3 &&
	android_relocs_[0] == 'A' &&
	android_relocs_[1] == 'P' &&
	android_relocs_[2] == 'S' &&
	android_relocs_[3] == '2') {
	DEBUG("[ android relocating %s ]", get_realpath());

	const uint8_t* packed_relocs = android_relocs_ + 4;
	const size_t packed_relocs_size = android_relocs_size_ - 4;

	if (!packed_relocate<RelocMode::Typical>(relocator, sleb128_decoder(packed_relocs, packed_relocs_size))) {
	return false;
	}
	} else {
	DL_ERR("bad android relocation header.");
	return false;
	}
	}

	if (relr_ != nullptr) {
	DEBUG("[ relocating %s relr ]", get_realpath());
	if (!relocate_relr()) {
	return false;
	}
	}

	#if defined(USE_RELA)
	if (rela_ != nullptr) {
	DEBUG("[ relocating %s rela ]", get_realpath());

	if (!plain_relocate<RelocMode::Typical>(relocator, rela_, rela_count_)) {
	return false;
	}
	}
	if (plt_rela_ != nullptr) {
	DEBUG("[ relocating %s plt rela ]", get_realpath());
	if (!plain_relocate<RelocMode::JumpTable>(relocator, plt_rela_, plt_rela_count_)) {
	return false;
	}
	}
	#else
	if (rel_ != nullptr) {
	DEBUG("[ relocating %s rel ]", get_realpath());
	if (!plain_relocate<RelocMode::Typical>(relocator, rel_, rel_count_)) {
	return false;
	}
	}
	if (plt_rel_ != nullptr) {
	DEBUG("[ relocating %s plt rel ]", get_realpath());
	if (!plain_relocate<RelocMode::JumpTable>(relocator, plt_rel_, plt_rel_count_)) {
	return false;
	}
	}
	#endif

	// Once the tlsdesc_args_ vector's size is finalized, we can write the addresses of its elements
	// into the TLSDESC relocations.
	#if defined(__aarch64__)
	// Bionic currently only implements TLSDESC for arm64.
	for (const std::pair<TlsDescriptor*, size_t>& pair : relocator.deferred_tlsdesc_relocs) {
	TlsDescriptor* desc = pair.first;
	desc->func = tlsdesc_resolver_dynamic;
	desc->arg = reinterpret_cast<size_t>(&tlsdesc_args_[pair.second]);
	}
	#endif

	return true;
	}

随后依次调用了 plain_relocate->plain_relocate_impl->process_relocation

	template <RelocMode OptMode, typename ...Args>
	static bool plain_relocate(Relocator& relocator, Args ...args) {
	return needs_slow_relocate_loop(relocator) ?
	plain_relocate_impl<RelocMode::General>(relocator, args...) :
	plain_relocate_impl<OptMode>(relocator, args...);
	}

	template <RelocMode Mode>
	__attribute__((noinline))
	static bool plain_relocate_impl(Relocator& relocator, rel_t* rels, size_t rel_count) {
	for (size_t i = 0; i < rel_count; ++i) {
	if (!process_relocation<Mode>(relocator, rels[i])) {
	return false;
	}
	}
	return true;
	}

	template <RelocMode Mode>
	__attribute__((always_inline))
	static inline bool process_relocation(Relocator& relocator, const rel_t& reloc) {
	return Mode == RelocMode::General ?
	process_relocation_general(relocator, reloc) :
	process_relocation_impl<Mode>(relocator, reloc);
	}

最终在 process_relocation_impl 实现了符号的重定向并调用 lookup_symbol 来查找符号

	template <RelocMode Mode>
	__attribute__((always_inline))
	static bool process_relocation_impl(Relocator& relocator, const rel_t& reloc) {
	constexpr bool IsGeneral = Mode == RelocMode::General;

	void* const rel_target = reinterpret_cast<void*>(reloc.r_offset + relocator.si->load_bias);
	const uint32_t r_type = ELFW(R_TYPE)(reloc.r_info);
	const uint32_t r_sym = ELFW(R_SYM)(reloc.r_info);

	soinfo* found_in = nullptr;
	const ElfW(Sym)* sym = nullptr;
	const char* sym_name = nullptr;
	ElfW(Addr) sym_addr = 0;

	if (r_sym != 0) {
	// 获取重定向的符号名
	sym_name = relocator.get_string(relocator.si_symtab[r_sym].st_name);
	}

	...

	#if defined(USE_RELA)
	auto get_addend_rel = [&]() -> ElfW(Addr) { return reloc.r_addend; };
	auto get_addend_norel = [&]() -> ElfW(Addr) { return reloc.r_addend; };
	#else
	auto get_addend_rel = [&]() -> ElfW(Addr) { return static_cast<ElfW(Addr)>(rel_target); };
	auto get_addend_norel = [&]() -> ElfW(Addr) { return 0; };
	#endif

	if (IsGeneral && is_tls_reloc(r_type)) {
	...
	} else {
	if (r_sym == 0) {
	// Do nothing.
	} else {
	// 利用 lookup_symbol 来查找符号
	if (!lookup_symbol<IsGeneral>(relocator, r_sym, sym_name, &found_in, &sym)) return false;
	if (sym != nullptr) {
	const bool should_protect_segments = handle_text_relocs &&
	found_in == relocator.si &&
	ELF_ST_TYPE(sym->st_info) == STT_GNU_IFUNC;
	if (should_protect_segments && !protect_segments()) return false;
	sym_addr = found_in->resolve_symbol_address(sym);
	if (should_protect_segments && !unprotect_segments()) return false;
	} else if constexpr (IsGeneral) {
	// A weak reference to an undefined symbol. We typically use a zero symbol address, but
	// use the relocation base for PC-relative relocations, so that the value written is zero.
	switch (r_type) {
	#if defined(__x86_64__)
	case R_X86_64_PC32:
	sym_addr = reinterpret_cast<ElfW(Addr)>(rel_target);
	break;
	#elif defined(__i386__)
	case R_386_PC32:
	sym_addr = reinterpret_cast<ElfW(Addr)>(rel_target);
	break;
	#endif
	}
	}
	}
	}

	// 大部分符号的类型都是 R_GENERIC_JUMP_SLOT
	if constexpr (IsGeneral \|\| Mode == RelocMode::JumpTable) {
	if (r_type == R_GENERIC_JUMP_SLOT) {
	count_relocation_if<IsGeneral>(kRelocAbsolute);
	const ElfW(Addr) result = sym_addr + get_addend_norel();
	trace_reloc("RELO JMP_SLOT %16p <- %16p %s",
	rel_target, reinterpret_cast<void*>(result), sym_name);
	static_cast<ElfW(Addr)>(rel_target) = result;
	return true;
	}
	}
	其他类型或架构的相关重定向计算省略
	...
	}

在 lookup_symbol 中调用了 soinfo_do_lookup 来查找符号

	template <bool DoLogging>
	__attribute__((always_inline))
	static inline bool lookup_symbol(Relocator& relocator, uint32_t r_sym, const char* sym_name,
	soinfo found_in, const ElfW(Sym) sym) {
	//relocator 是前面传进来包含全局组和本地组的 soinfos，全局组排在最前面
	// 如果上一次已经查找过这个符号，那么久没有必要再查找一次
	if (r_sym == relocator.cache_sym_val) {
	*found_in = relocator.cache_si;
	*sym = relocator.cache_sym;
	count_relocation_if<DoLogging>(kRelocSymbolCached);
	} else {
	const version_info* vi = nullptr;
	if (!relocator.si->lookup_version_info(relocator.version_tracker, r_sym, sym_name, &vi)) {
	return false;
	}

	soinfo* local_found_in = nullptr;
	// 最终调用 soinfo_do_lookup 来查找符号
	const ElfW(Sym)* local_sym = soinfo_do_lookup(sym_name, vi, &local_found_in, relocator.lookup_list);

	relocator.cache_sym_val = r_sym;
	relocator.cache_si = local_found_in;
	relocator.cache_sym = local_sym;
	*found_in = local_found_in;
	*sym = local_sym;
	}

	if (*sym == nullptr) {
	if (ELF_ST_BIND(relocator.si_symtab[r_sym].st_info) != STB_WEAK) {
	DL_ERR("cannot locate symbol \"%s\" referenced by \"%s\"...", sym_name, relocator.si->get_realpath());
	return false;
	}
	}

	count_relocation_if<DoLogging>(kRelocSymbol);
	return true;
	}

在 soinfo_do_lookup 中最终调用模板函数 soinfo_do_lookup_impl 进行符号查找

	//android-platform\bionic\linker\linker_soinfo.cpp
	const ElfW(Sym)* soinfo_do_lookup(const char* name, const version_info* vi,
	soinfo** si_found_in, const SymbolLookupList& lookup_list) {
	return lookup_list.needs_slow_path() ?
	soinfo_do_lookup_impl<true>(name, vi, si_found_in, lookup_list) :
	soinfo_do_lookup_impl<false>(name, vi, si_found_in, lookup_list);
	}

有 hash 表查 hash 表，没 hash 表用符号查找

	template <bool IsGeneral>
	__attribute__((noinline)) static const ElfW(Sym)*
	soinfo_do_lookup_impl(const char* name, const version_info* vi,
	soinfo** si_found_in, const SymbolLookupList& lookup_list) {
	const auto [ hash, name_len ] = calculate_gnu_hash(name);
	constexpr uint32_t kBloomMaskBits = sizeof(ElfW(Addr)) * 8;
	SymbolName elf_symbol_name(name);

	const SymbolLookupLib* end = lookup_list.end();
	const SymbolLookupLib* it = lookup_list.begin();

	while (true) {
	const SymbolLookupLib* lib;
	uint32_t sym_idx;

	// Iterate over libraries until we find one whose Bloom filter matches the symbol we're
	// searching for.
	// 在每一个库中都去寻找有没有指定的符号
	while (true) {
	if (it == end) return nullptr;
	lib = it++;

	// 要是没有 hash 表，就通过名称来进行查找
	if (IsGeneral && lib->needs_sysv_lookup()) {
	if (const ElfW(Sym)* sym = lib->si_->find_symbol_by_name(elf_symbol_name, vi)) {
	*si_found_in = lib->si_;
	return sym;
	}
	continue;
	}

	if (IsGeneral) {
	TRACE_TYPE(LOOKUP, "SEARCH %s in %s@%p (gnu)",
	name, lib->si_->get_realpath(), reinterpret_cast<void*>(lib->si_->base));
	}

	// 计算符号 hash 桶查询链
	const uint32_t word_num = (hash / kBloomMaskBits) & lib->gnu_maskwords_;
	const ElfW(Addr) bloom_word = lib->gnu_bloom_filter_[word_num];
	const uint32_t h1 = hash % kBloomMaskBits;
	const uint32_t h2 = (hash >> lib->gnu_shift2_) % kBloomMaskBits;

	if ((1 & (bloom_word >> h1) & (bloom_word >> h2)) == 1) {
	sym_idx = lib->gnu_bucket_[hash % lib->gnu_nbucket_];
	if (sym_idx != 0) {
	break;
	}
	}

	if (IsGeneral) {
	TRACE_TYPE(LOOKUP, "NOT FOUND %s in %s@%p",
	name, lib->si_->get_realpath(), reinterpret_cast<void*>(lib->si_->base));
	}
	}

	// Search the library's hash table chain.
	ElfW(Versym) verneed = kVersymNotNeeded;
	bool calculated_verneed = false;

	uint32_t chain_value = 0;
	const ElfW(Sym)* sym = nullptr;

	//// 根据符号 hash 快速查找
	do {
	sym = lib->symtab_ + sym_idx;
	chain_value = lib->gnu_chain_[sym_idx];
	if ((chain_value >> 1) == (hash >> 1)) {
	if (vi != nullptr && !calculated_verneed) {
	calculated_verneed = true;
	verneed = find_verdef_version_index(lib->si_, vi);
	}
	if (check_symbol_version(lib->versym_, sym_idx, verneed) &&
	static_cast<size_t>(sym->st_name) + name_len + 1 <= lib->strtab_size_ &&
	memcmp(lib->strtab_ + sym->st_name, name, name_len + 1) == 0 &&
	is_symbol_global_and_defined(lib->si_, sym)) {
	*si_found_in = lib->si_;
	if (IsGeneral) {
	TRACE_TYPE(LOOKUP, "FOUND %s in %s (%p) %zd",
	name, lib->si_->get_realpath(), reinterpret_cast<void*>(sym->st_value),
	static_cast<size_t>(sym->st_size));
	}
	return sym;
	}
	}
	++sym_idx;
	} while ((chain_value & 1) == 0);

	if (IsGeneral) {
	TRACE_TYPE(LOOKUP, "NOT FOUND %s in %s@%p",
	name, lib->si_->get_realpath(), reinterpret_cast<void*>(lib->si_->base));
	}
	}
	}

# 收尾工作

对依赖库的链接情况进行标记，并增加依赖库的引用计数

	// Step 7: Mark all load_tasks as linked and increment refcounts
	// for references between load_groups (at this point it does not matter if
	// referenced load_groups were loaded by previous dlopen or as part of this
	// one on step 6)
	if (start_with != nullptr && add_as_children) {
	start_with->set_linked();
	}

	for (auto&& task : load_tasks) {
	soinfo* si = task->get_soinfo();
	si->set_linked();
	}

	for (auto&& task : load_tasks) {
	soinfo* si = task->get_soinfo();
	soinfo* needed_by = task->get_needed_by();
	if (needed_by != nullptr &&
	needed_by != start_with &&
	needed_by->get_local_group_root() != si->get_local_group_root()) {
	// 增加依赖库 so 的引用计数
	si->increment_ref_count();
	}
	}

至此为止，一个 so 就被成功的加载进来了～

# so 的卸载过程

在 android 中并没有直接的接口来让开发者卸载一个 so, 所以对于 so 的卸载过程我们无法使用自上而下的方式去分析，但可以利用逆向的方法，自底向上一步一步探索 so 的卸载过程究竟是什么样子的

首先整理一下目前为止从 AOSP 源码以及网上找的线索:

android 的 so 中有一个独特的函数 JNI_OnUnload , 当 so 卸载时会进行调用

在 AOSP 的 platform\bionic\linker\linker_soinfo.cpp 中有一个函数 call_destructors , 它的完整代码如下

	//platform\bionic\linker\linker_soinfo.cpp
	void soinfo::call_destructors() {
	if (!constructors_called) {
	return;
	}

	ScopedTrace trace((std::string("calling destructors: ") + get_realpath()).c_str());

	// DT_FINI_ARRAY must be parsed in reverse order.
	call_array("DT_FINI_ARRAY", fini_array_, fini_array_count_, true, get_realpath());

	// DT_FINI should be called after DT_FINI_ARRAY if both are present.
	call_function("DT_FINI", fini_func_, get_realpath());
	}

当调用该函数时，会先调用 final_array 中的函数，最后调用 final 函数 (怎么和 init 与 init_array 反过来了)

那么我们可以提出以下两个问题，来为逆向分析的过程明确一个清晰的目标

在什么情况下 JNI_OnUnload 与 call_destructors 会被调用？
JNI_OnUnload 和 call_destructors 调用的先后顺序是什么？

带着这两个问题，我们首先对 JNI_OnUnload 进行分析

# JNI_OnUnload

# UnloadLibraries

android 中存在一个特有的函数 JNI_OnUnload , 当虚拟机释放该 so 时，来进行善后清除动作，通过在 android 官网源码搜索平台翻了好多页的搜索结果，终于找到了 JNI_OnUnload 的调用函数，他在 art/runtime/jni/java_vm_ext.cc 中的 UnloadLibraries 中被调用

	//platform\art\runtime\jni\java_vm_ext.cc
	static void UnloadLibraries(JavaVM* vm, const std::vector<SharedLibrary*>& libraries) {
	using JNI_OnUnloadFn = void()(JavaVM, void*);
	for (SharedLibrary* library : libraries) {
	void* const sym = library->FindSymbol("JNI_OnUnload", nullptr, android::kJNICallTypeRegular);
	if (sym == nullptr) {
	VLOG(jni) << "[No JNI_OnUnload found in \"" << library->GetPath() << "\"]";
	} else {
	VLOG(jni) << "[JNI_OnUnload found for \"" << library->GetPath() << "\"]: Calling...";
	JNI_OnUnloadFn jni_on_unload = reinterpret_cast<JNI_OnUnloadFn>(sym);
	jni_on_unload(vm, nullptr);
	}
	}
	}

# UnloadNativeLibraries

再去看一下 UnloadLibraries 的引用，它在 UnloadNativeLibraries 被调用

	//platform\art\runtime\jni\java_vm_ext.cc
	// Unload native libraries with cleared class loaders.
	void UnloadNativeLibraries()
	REQUIRES(!Locks::jni_libraries_lock_)
	REQUIRES_SHARED(Locks::mutator_lock_) {
	Thread* const self = Thread::Current();
	std::vector<SharedLibrary*> unload_libraries;
	{
	MutexLock mu(self, *Locks::jni_libraries_lock_);
	for (auto it = libraries_.begin(); it != libraries_.end(); ) {
	SharedLibrary* const library = it->second;
	// If class loader is null then it was unloaded, call JNI_OnUnload.
	const jweak class_loader = library->GetClassLoader();
	// If class_loader is a null jobject then it is the boot class loader. We should not unload
	// the native libraries of the boot class loader.
	if (class_loader != nullptr && self->IsJWeakCleared(class_loader)) {
	unload_libraries.push_back(library);
	it = libraries_.erase(it);
	} else {
	++it;
	}
	}
	}
	ScopedThreadSuspension sts(self, kNative);
	// Do this without holding the jni libraries lock to prevent possible deadlocks.
	// 调用 so 中的 JNI_OnUnload
	UnloadLibraries(self->GetJniEnv()->GetVm(), unload_libraries);
	for (auto library : unload_libraries) {
	delete library;
	}
	}

# JavaVMExt::UnloadNativeLibraries

这里调用了 libraries_ 中的 UnloadNativeLibraries 函数，看起来卸载的过程和 Java 虚拟机有些许的关系

	//platform\art\runtime\jni\java_vm_ext.cc
	void JavaVMExt::UnloadNativeLibraries() {
	libraries_.get()->UnloadNativeLibraries();
	}

# Heap::CollectGarbageInternal

JavaVMExt::UnloadNativeLibraries 在 Heap::CollectGarbageInternal 的末尾被调用

这函数看起来和虚拟机堆执行垃圾回收有关，垃圾回收执行完毕后会去调用 JNI_OnUnload

然而再往上寻找却找不到什么有用的函数了，我们只知道在 JVM 垃圾回收之后会去调用 JNI_OnUnload

	//platform\art\runtime\gc\heap.cc
	collector::GcType Heap::CollectGarbageInternal(collector::GcType gc_type,
	GcCause gc_cause,
	bool clear_soft_references,
	uint32_t requested_gc_num) {
	Thread* self = Thread::Current();
	Runtime* runtime = Runtime::Current();
	// If the heap can't run the GC, silently fail and return that no GC was run.
	switch (gc_type) {
	case collector::kGcTypePartial: {
	if (!HasZygoteSpace()) {
	// Do not increment gcs_completed_ . We should retry with kGcTypeFull.
	return collector::kGcTypeNone;
	}
	break;
	}
	default: {
	// Other GC types don't have any special cases which makes them not runnable. The main case
	// here is full GC.
	}
	}
	ScopedThreadStateChange tsc(self, kWaitingPerformingGc);
	Locks::mutator_lock_->AssertNotHeld(self);
	if (self->IsHandlingStackOverflow()) {
	// If we are throwing a stack overflow error we probably don't have enough remaining stack
	// space to run the GC.
	// Count this as a GC in case someone is waiting for it to complete.
	gcs_completed_.fetch_add(1, std::memory_order_release);
	return collector::kGcTypeNone;
	}
	bool compacting_gc;
	{
	gc_complete_lock_->AssertNotHeld(self);
	ScopedThreadStateChange tsc2(self, kWaitingForGcToComplete);
	MutexLock mu(self, *gc_complete_lock_);
	// Ensure there is only one GC at a time.
	WaitForGcToCompleteLocked(gc_cause, self);
	if (requested_gc_num != GC_NUM_ANY && !GCNumberLt(GetCurrentGcNum(), requested_gc_num)) {
	// The appropriate GC was already triggered elsewhere.
	return collector::kGcTypeNone;
	}
	compacting_gc = IsMovingGc(collector_type_);
	// GC can be disabled if someone has a used GetPrimitiveArrayCritical.
	if (compacting_gc && disable_moving_gc_count_ != 0) {
	LOG(WARNING) << "Skipping GC due to disable moving GC count " << disable_moving_gc_count_;
	// Again count this as a GC.
	gcs_completed_.fetch_add(1, std::memory_order_release);
	return collector::kGcTypeNone;
	}
	if (gc_disabled_for_shutdown_) {
	gcs_completed_.fetch_add(1, std::memory_order_release);
	return collector::kGcTypeNone;
	}
	collector_type_running_ = collector_type_;
	last_gc_cause_ = gc_cause;
	}
	if (gc_cause == kGcCauseForAlloc && runtime->HasStatsEnabled()) {
	++runtime->GetStats()->gc_for_alloc_count;
	++self->GetStats()->gc_for_alloc_count;
	}
	const size_t bytes_allocated_before_gc = GetBytesAllocated();

	DCHECK_LT(gc_type, collector::kGcTypeMax);
	DCHECK_NE(gc_type, collector::kGcTypeNone);

	collector::GarbageCollector* collector = nullptr;
	// TODO: Clean this up.
	if (compacting_gc) {
	DCHECK(current_allocator_ == kAllocatorTypeBumpPointer \|\|
	current_allocator_ == kAllocatorTypeTLAB \|\|
	current_allocator_ == kAllocatorTypeRegion \|\|
	current_allocator_ == kAllocatorTypeRegionTLAB);
	switch (collector_type_) {
	case kCollectorTypeSS:
	semi_space_collector_->SetFromSpace(bump_pointer_space_);
	semi_space_collector_->SetToSpace(temp_space_);
	semi_space_collector_->SetSwapSemiSpaces(true);
	collector = semi_space_collector_;
	break;
	case kCollectorTypeCC:
	collector::ConcurrentCopying* active_cc_collector;
	if (use_generational_cc_) {
	// TODO: Other threads must do the flip checkpoint before they start poking at
	// active_concurrent_copying_collector_. So we should not concurrency here.
	active_cc_collector = (gc_type == collector::kGcTypeSticky) ?
	young_concurrent_copying_collector_ : concurrent_copying_collector_;
	active_concurrent_copying_collector_.store(active_cc_collector,
	std::memory_order_relaxed);
	DCHECK(active_cc_collector->RegionSpace() == region_space_);
	collector = active_cc_collector;
	} else {
	collector = active_concurrent_copying_collector_.load(std::memory_order_relaxed);
	}
	break;
	default:
	LOG(FATAL) << "Invalid collector type " << static_cast<size_t>(collector_type_);
	}
	if (collector != active_concurrent_copying_collector_.load(std::memory_order_relaxed)) {
	temp_space_->GetMemMap()->Protect(PROT_READ \| PROT_WRITE);
	if (kIsDebugBuild) {
	// Try to read each page of the memory map in case mprotect didn't work properly b/19894268.
	temp_space_->GetMemMap()->TryReadable();
	}
	CHECK(temp_space_->IsEmpty());
	}
	gc_type = collector::kGcTypeFull; // TODO: Not hard code this in.
	} else if (current_allocator_ == kAllocatorTypeRosAlloc \|\|
	current_allocator_ == kAllocatorTypeDlMalloc) {
	collector = FindCollectorByGcType(gc_type);
	} else {
	LOG(FATAL) << "Invalid current allocator " << current_allocator_;
	}

	CHECK(collector != nullptr)
	<< "Could not find garbage collector with collector_type="
	<< static_cast<size_t>(collector_type_) << " and gc_type=" << gc_type;
	collector->Run(gc_cause, clear_soft_references \|\| runtime->IsZygote());
	IncrementFreedEver();
	RequestTrim(self);
	// Collect cleared references.
	SelfDeletingTask* clear = reference_processor_->CollectClearedReferences(self);
	// Grow the heap so that we know when to perform the next GC.
	GrowForUtilization(collector, bytes_allocated_before_gc);
	old_native_bytes_allocated_.store(GetNativeBytes());
	LogGC(gc_cause, collector);
	FinishGC(self, gc_type);
	// Actually enqueue all cleared references. Do this after the GC has officially finished since
	// otherwise we can deadlock.
	clear->Run(self);
	clear->Finalize();
	// Inform DDMS that a GC completed.
	Dbg::GcDidFinish();

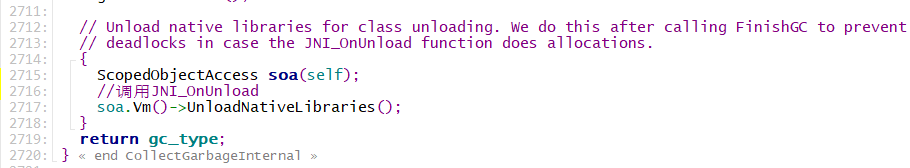

	// Unload native libraries for class unloading. We do this after calling FinishGC to prevent
	// deadlocks in case the JNI_OnUnload function does allocations.
	{
	ScopedObjectAccess soa(self);
	// 调用 JNI_OnUnload
	soa.Vm()->UnloadNativeLibraries();
	}
	return gc_type;
	}

# call_destructors

call_destructors 函数如下，我们向上找找看交叉引用

	//platform\bionic\linker\linker_soinfo.cpp
	void soinfo::call_destructors() {
	if (!constructors_called) {
	return;
	}

	ScopedTrace trace((std::string("calling destructors: ") + get_realpath()).c_str());

	// DT_FINI_ARRAY must be parsed in reverse order.
	call_array("DT_FINI_ARRAY", fini_array_, fini_array_count_, true, get_realpath());

	// DT_FINI should be called after DT_FINI_ARRAY if both are present.
	call_function("DT_FINI", fini_func_, get_realpath());
	}

# soinfo_unload_impl

这里我们发现 log 代码中都出现了 dlclose 字样，那么显而易见这应该和 dlclose 脱不了干系，在往上看看

	//platform\bionic\linker\linker.cpp
	static void soinfo_unload_impl(soinfo* root) {
	ScopedTrace trace((std::string("unload ") + root->get_realpath()).c_str());
	bool is_linked = root->is_linked();

	if (!root->can_unload()) {
	LD_LOG(kLogDlopen,
	"... dlclose(root=\"%s\"@%p) ... not unloading - the load group is flagged with NODELETE",
	root->get_realpath(),
	root);
	return;
	}


	soinfo_list_t unload_list;
	unload_list.push_back(root);

	soinfo_list_t local_unload_list;
	soinfo_list_t external_unload_list;
	soinfo* si = nullptr;

	// 将要卸载的 so 的 soinfo 添加到 local_unload_list 中
	while ((si = unload_list.pop_front()) != nullptr) {
	if (local_unload_list.contains(si)) {
	continue;
	}

	local_unload_list.push_back(si);

	if (si->has_min_version(0)) {
	soinfo* child = nullptr;
	while ((child = si->get_children().pop_front()) != nullptr) {
	TRACE("%s@%p needs to unload %s@%p", si->get_realpath(), si,
	child->get_realpath(), child);

	child->get_parents().remove(si);

	if (local_unload_list.contains(child)) {
	continue;
	} else if (child->is_linked() && child->get_local_group_root() != root) {
	external_unload_list.push_back(child);
	} else if (child->get_parents().empty()) {
	unload_list.push_back(child);
	}
	}
	} else {
	async_safe_fatal("soinfo for \"%s\"@%p has no version", si->get_realpath(), si);
	}
	}

	local_unload_list.for_each([](soinfo* si) {
	LD_LOG(kLogDlopen,
	"... dlclose: calling destructors for \"%s\"@%p ... ",
	si->get_realpath(),
	si);
	// 调用 call_destructors 执行 final_array 和 final 函数
	si->call_destructors();
	LD_LOG(kLogDlopen,
	"... dlclose: calling destructors for \"%s\"@%p ... done",
	si->get_realpath(),
	si);
	});

	// 进行 soinfo 最后的收尾工作
	while ((si = local_unload_list.pop_front()) != nullptr) {
	LD_LOG(kLogDlopen,
	"... dlclose: unloading \"%s\"@%p ...",
	si->get_realpath(),
	si);
	++g_module_unload_counter;
	notify_gdb_of_unload(si);
	unregister_soinfo_tls(si);
	if (__libc_shared_globals()->unload_hook) {
	__libc_shared_globals()->unload_hook(si->load_bias, si->phdr, si->phnum);
	}
	get_cfi_shadow()->BeforeUnload(si);
	soinfo_free(si);
	}

	if (is_linked) {
	while ((si = external_unload_list.pop_front()) != nullptr) {
	LD_LOG(kLogDlopen,
	"... dlclose: unloading external reference \"%s\"@%p ...",
	si->get_realpath(),
	si);
	soinfo_unload(si);
	}
	} else {
	LD_LOG(kLogDlopen,
	"... dlclose: unload_si was not linked - not unloading external references ...");
	}
	}

# soinfo_unload

soinfo_unload_impl 被 soinfo_unload 调用，主要让引用计数减一，然后调用核心的卸载逻辑

	//platform\bionic\linker\linker.cpp
	static void soinfo_unload(soinfo* unload_si) {
	// Note that the library can be loaded but not linked;
	// in which case there is no root but we still need
	// to walk the tree and unload soinfos involved.
	//
	// This happens on unsuccessful dlopen, when one of
	// the DT_NEEDED libraries could not be linked/found.
	// 这个 so 不管有没有被链接，只要加载了，那必须得 unload 卸载
	bool is_linked = unload_si->is_linked();
	soinfo* root = is_linked ? unload_si->get_local_group_root() : unload_si;

	LD_LOG(kLogDlopen,
	"... dlclose(realpath=\"%s\"@%p) ... load group root is \"%s\"@%p",
	unload_si->get_realpath(),
	unload_si,
	root->get_realpath(),
	root);

	// 如果被其他库链接了 (其实就是被引用了), 那卸载的时候引用计数就 - 1
	size_t ref_count = is_linked ? root->decrement_ref_count() : 0;
	if (ref_count > 0) {
	LD_LOG(kLogDlopen,
	"... dlclose(root=\"%s\"@%p) ... not unloading - decrementing ref_count to %zd",
	root->get_realpath(),
	root,
	ref_count);
	return;
	}

	// 执行核心 unload 操作
	soinfo_unload_impl(root);
	}

# do_dlclose

果不其然，是调用 do_dlclose 来进行卸载的

	//platform\bionic\linker\linker.cpp
	int do_dlclose(void* handle) {
	ScopedTrace trace("dlclose");
	ProtectedDataGuard guard;
	soinfo* si = soinfo_from_handle(handle);
	if (si == nullptr) {
	DL_OPEN_ERR("invalid handle: %p", handle);
	return -1;
	}

	LD_LOG(kLogDlopen,
	"dlclose(handle=%p, realpath=\"%s\"@%p) ...",
	handle,
	si->get_realpath(),
	si);
	// 卸载 soinfo
	soinfo_unload(si);
	LD_LOG(kLogDlopen,
	"dlclose(handle=%p) ... done",
	handle);
	return 0;
	}

# __loader_dlclose

	//platform\bionic\linker\dlfcn.cpp
	int __loader_dlclose(void* handle) {
	ScopedPthreadMutexLocker locker(&g_dl_mutex);
	int result = do_dlclose(handle);
	if (result != 0) {
	__bionic_format_dlerror("dlclose failed", linker_get_error_buffer());
	}
	return result;
	}

# dlclose

最终来到了 dlclose 这个函数，但是因为 dlclose 的调用实在是太多了，我们很难去找到究竟是哪一个函数调用的 dlclose 来对这个 so 执行最终的卸载操作

	//E:\android-platform\bionic\libdl\libdl.cpp
	__attribute__((__weak__))
	int dlclose(void* handle) {
	return __loader_dlclose(handle);
	}

# 注释中的矛盾点

我们向前看看 android 开发者留给我们的注释

	//android-platform\art\runtime\jni\java_vm_ext.cc
	bool JavaVMExt::LoadNativeLibrary(JNIEnv* env,
	const std::string& path,
	jobject class_loader,
	jclass caller_class,
	std::string* error_msg) {
	...

	// 阶段二：加载 so
	// Open the shared library. Because we're using a full path, the system
	// doesn't have to search through LD_LIBRARY_PATH. (It may do so to
	// resolve this library's dependencies though.)

	// Failures here are expected when java.library.path has several entries
	// and we have to hunt for the lib.

	// Below we dlopen but there is no paired dlclose, this would be necessary if we supported
	// class unloading. Libraries will only be unloaded when the reference count (incremented by
	// dlopen) becomes zero from dlclose.

	// Retrieve the library path from the classloader, if necessary.
	ScopedLocalRef<jstring> library_path(env, GetLibrarySearchPath(env, class_loader));

	Locks::mutator_lock_->AssertNotHeld(self);
	const char* path_str = path.empty() ? nullptr : path.c_str();
	bool needs_native_bridge = false;
	char* nativeloader_error_msg = nullptr;
	// 调用 dlopen 打开目标 so
	void* handle = android::OpenNativeLibrary(
	env,
	runtime_->GetTargetSdkVersion(),
	path_str,
	class_loader,
	(caller_location.empty() ? nullptr : caller_location.c_str()),
	library_path.get(),
	&needs_native_bridge,
	&nativeloader_error_msg);
	VLOG(jni) << "[Call to dlopen(\"" << path << "\", RTLD_NOW) returned " << handle << "]";

	...
	}

Below we dlopen but there is no paired dlclose, this would be necessary if we supported class unloading. Libraries will only be unloaded when the reference count (incremented by dlopen) becomes zero from dlclose.

当调用 dlopen 加载 so 时，会增加一次对 so 的引用计数，而当引用计数变成 0 之后，便会自动调用 dlclose 卸载 so

	//android-platform\bionic\linker\linker.cpp
	static soinfo* find_library(android_namespace_t* ns,
	const char* name, int rtld_flags,
	const android_dlextinfo* extinfo,
	soinfo* needed_by) {
	soinfo* si = nullptr;
	...
	// 加载 so 成功，so 的引用次数 + 1, 对应了 JavaVMExt::LoadNativeLibrary 中
	//so 加载时这一部分的注释↓
	/*
	Below we dlopen but there is no paired dlclose, this would be necessary if we supported
	class unloading. Libraries will only be unloaded when the reference count (incremented by
	dlopen) becomes zero from dlclose.
	*/
	si->increment_ref_count();

	return si;
	}

所以现在我们的目标从谁调用了 dlclose 变成了谁调用了 soinfo::decrement_ref_count , 但是在 soinfo_unload 中，不是已经调用过 decrement_ref_count 了吗，这段注释和实际的情况怎么看起来相互矛盾？我们期望的函数调用是 anonymous_func->decrement_ref_count->dlclose , 但是实际的调用流是 dlclose->decrement_ref_count , 这完全是相反的调用过程呀

# 编写 demo 观察卸载函数调用先后情况

现在我们光从源码已经很难再逆向分析出最终是在哪一个函数中依次调用了 JNI_OnUnload 和 call_destructors , 所以我们需要实际动手写一个测试 demo, 通过打印日志的方式，通过 logcat 来观察实际的调用情况

	#include <jni.h>
	#include "stdio.h"
	#include <dlfcn.h>
	extern "C"{
	#include <android/log.h>
	#define TAG "oacia_tag" // 这个是自定义的 LOG 的标识
	#define LOGD(...) __android_log_print(ANDROID_LOG_DEBUG,TAG ,__VA_ARGS__)
	jint JNI_OnLoad(JavaVM* vm, void* reserved __unused)
	{
	LOGD("JNI_OnLoad called");
	return JNI_VERSION_1_6;
	}
	__attribute((constructor)) void before_main()
	{
	LOGD("constructor called!");
	}

	__attribute((destructor)) void after_main()
	{
	LOGD("destructor called!");
	}

	void JNI_OnUnload(JavaVM* vm, void* reserved __unused)
	{
	LOGD("JNI_OnUnload called");
	}
	}

然而当退出 app 时，不论 JNI_OnUnload 还是 destructor 均没有被调用，走到这里看起来已经进入死胡同了，可能这两个函数从未被调用… 那暂时先到此为止吧～要是未来有新的发现的话再继续卸载过程的分析

# 参考资料

Android Linker 学习笔记
Android 系统加载 so 的源码分析
Android 动态修改 Linker 实现 LD_PRELOAD 全局库 PLT Hook

# so 的启动过程

# System.load

# Runtime.getRuntime().load0

# Runtime.java 中的 nativeLoad

# Runtime.c 中的 nativeLoad

# JVM_NativeLoad

# vm->LoadNativeLibrary

# so 的加载过程

# android::OpenNativeLibrary

# android_dlopen_ext

# __loader_android_dlopen_ext

# dlopen_ext

# do_dlopen

# soinfo

# call_constructors

# find_library

# find_libraries

# 准备阶段

# 寻找依赖库，添加到待加载队列

# find_library_internal

# load_library

# 重载的 load_library

# 乱序加载库

# 预链接解析所有依赖库

# 构造全局组

# 收集 local_groups 的根节点

# 链接所有的 local groups

# 收尾工作

# so 的卸载过程

# JNI_OnUnload

# UnloadLibraries

# UnloadNativeLibraries

# JavaVMExt::UnloadNativeLibraries

# Heap::CollectGarbageInternal

# call_destructors

# soinfo_unload_impl

# soinfo_unload

# do_dlclose

# __loader_dlclose

# dlclose

# 注释中的矛盾点

# 编写 demo 观察卸载函数调用先后情况

# 参考资料

微信小程序devtool抓包+反编译wxapkg

ELF结构分析及ElfReader
