package com.oacia;

import com.github.unidbg.AndroidEmulator;

import com.github.unidbg.Module;

import com.github.unidbg.arm.backend.Unicorn2Factory;

import com.github.unidbg.linux.android.AndroidEmulatorBuilder;

import com.github.unidbg.linux.android.AndroidResolver;

import com.github.unidbg.linux.android.dvm.DalvikModule;

import com.github.unidbg.linux.android.dvm.VM;

import com.github.unidbg.memory.Memory;

import java.io.File;

public class Myunidbg {

    private final AndroidEmulator emulator;

    private final VM vm;

    private DalvikModule dm;

    private Module module;

    public Myunidbg()

    {

        // 创建模拟器

        emulator = AndroidEmulatorBuilder

                .for64Bit()

            	/*

                hypervisor 引擎可以在搭载了 Apple Silicon 芯片的设备上模拟执行

                KVM 引擎可以在树莓派上模拟执行

                Dynarmic 引擎是为了更快的模拟执行

                Unicorn 是最强大最完善的模拟执行引擎，但它的缺点是慢

                */

                .addBackendFactory(new Unicorn2Factory(true))

                .setProcessName("com.oacia.test")

                .build();

        // 获取操作内存的接口

        Memory memory = emulator.getMemory();

        // 设置 andorid 系统库版本

        memory.setLibraryResolver(new AndroidResolver(26));

        // 创建虚拟机

        vm = emulator.createDalvikVM();

        // 开启 log

        vm.setVerbose(true);

        // 加载目标库

        dm = vm.loadLibrary(new File("E:\\oacia\\libtprt.so"), false);

        module = dm.getModule();

        // 执行 JNIOnLoad（如果有的话）

        dm.callJNI_OnLoad(emulator);

    }

    public static void main(String[] args) {

    }

}

vm.loadLibrary(new File("f:\\androidlib\\libc.so"),false);

vm.loadLibrary(new File("f:\\androidlib\\libm.so"),false);

vm.loadLibrary(new File("f:\\androidlib\\libstdc++.so"),false);

vm.loadLibrary(new File("f:\\androidlib\\ld-android.so"),false);

vm.loadLibrary(new File("f:\\androidlib\\libdl.so"),false);

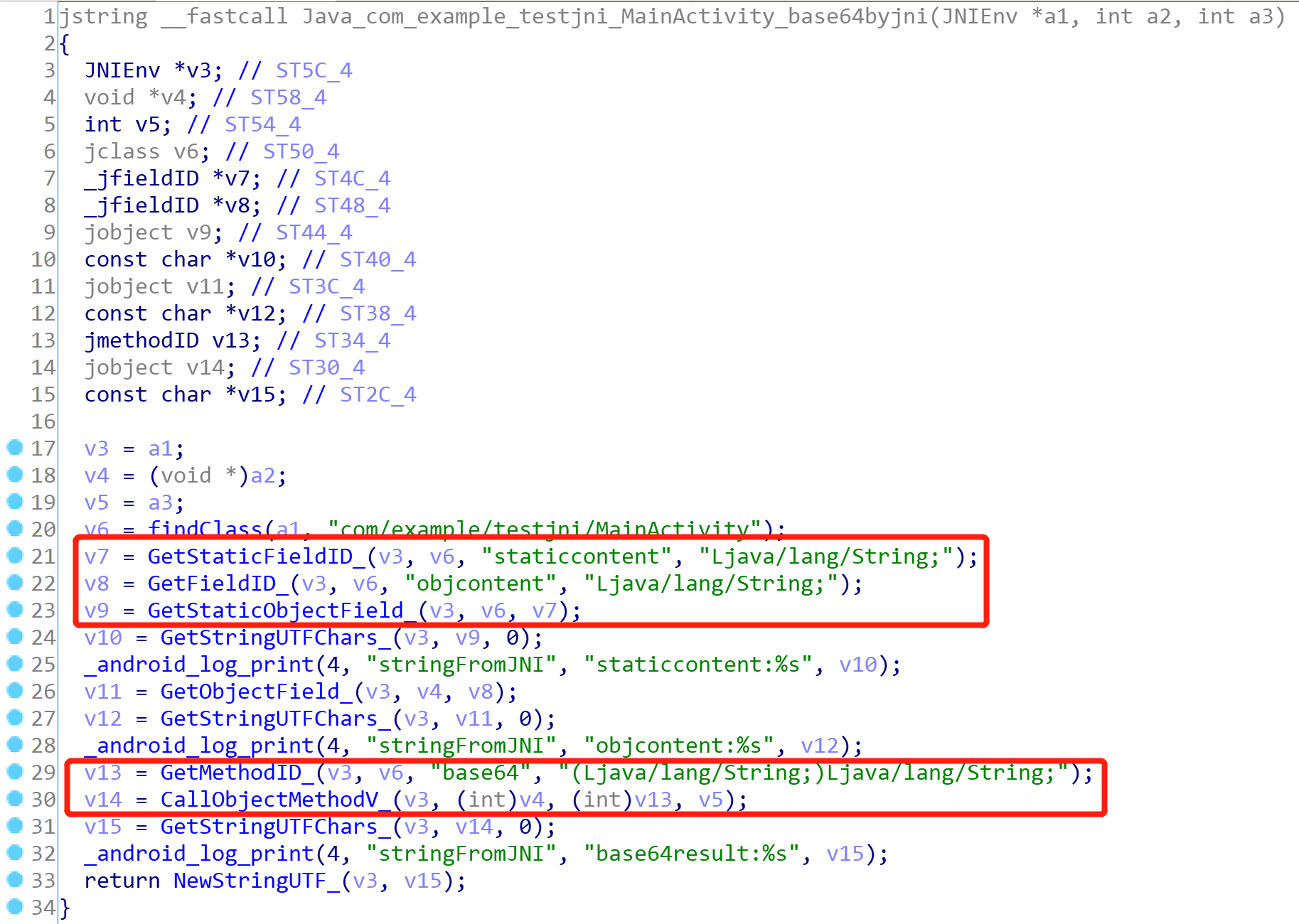

public class MainActivitymethod1 extends AbstractJni {

    private static DvmClass MainActivityClass;

    @Override

    /*

    * base64 是 java 层的方法，这里重写 callObjectMethodV 方法：一旦发现调用的是 java 层的 base64 方法，这里就用自己复现的 base64 方法替换

    * */

    public DvmObject<?> callObjectMethodV(BaseVM vm, DvmObject<?> dvmObject, String signature, VaList vaList) {

        System.out.println("callObjectMethodV->"+signature);

        if(signature.equals("com/example/testjni/MainActivity->base64(Ljava/lang/String;)Ljava/lang/String;")){

            DvmObject dvmobj=vaList.getObjectArg(0);

            String arg= (String) dvmobj.getValue();

            String result=base64(arg);

            return new StringObject(vm,result);

        }

        return super.callObjectMethodV(vm, dvmObject, signature, vaList);

    }

    @Override

    /*

    * staticcontent 是 java 层的静态变量；getStaticObjectField，一旦检测到 so 层引用这个变量，那么自己返回这个变量的值

    * */

    public DvmObject<?> getStaticObjectField(BaseVM vm, DvmClass dvmClass, String signature) {

        System.out.println("getStaticObjectField->"+signature);

        if(signature.equals("com/example/testjni/MainActivity->staticcontent:Ljava/lang/String;")){

            return new StringObject(vm,"staticcontent");// 源码 public static string staticcontent = "staticcontent"

        }

        return super.getStaticObjectField(vm, dvmClass, signature);

    }

    @Override

    /*

    * objcontent 是 java 层的变量；这里重写 getObjectField 方法，一旦检测到 so 层引用这个变量，那么自己返回这个变量的值

    * */

    public DvmObject<?> getObjectField(BaseVM vm, DvmObject<?> dvmObject, String signature) {

        System.out.println("getObjectField->"+signature);

        if(signature.equals("com/example/testjni/MainActivity->objcontent:Ljava/lang/String;")){

            return new StringObject(vm,"objcontent");//public string objcontent

        }

        return super.getObjectField(vm, dvmObject, signature);

    }

    /*

    * java 层的方法，这里需要复现，否则不知道怎么执行

    * */

    public String base64(String arg3) {

        String result=Base64.encodeBase64String(arg3.getBytes());

        return result;

    }

}

public void AndroidEmulator_use(){

    // 获取内存操作接口

    Memory memory = emulator.getMemory();

    // 获取进程 pid

    int pid = emulator.getPid();

    // 创建虚拟机

    VM dalvikVM = emulator.createDalvikVM();

    // 创建虚拟机并指定 APK 文件

    VM dalvikVM = emulator.createDalvikVM(new File("E:/oacia/my.apk"));

    // 获取已创建的虚拟机

    VM dalvikVM = emulator.getDalvikVM();

    // 显示当前寄存器状态 可指定寄存器

    emulator.showRegs();

    // 获取后端 CPU

    Backend backend = emulator.getBackend();

    // 获取进程名

    String processName = emulator.getProcessName();

    // 获取寄存器

    RegisterContext context = emulator.getContext();

    //Trace 读内存

    emulator.traceRead(1,0);

    //Trace 写内存

    emulator.traceWrite(1,0);

    //Trace 汇编

    emulator.traceCode(1,0);

    // 是否正在运行

    boolean running = emulator.isRunning();

}

public void Memory_use(){

    Memory memory = emulator.getMemory();

    // 指定 Android SDK 版本

    memory.setLibraryResolver(new AndroidResolver(23));

    // 拿到一个指针，指向内存地址，通过该指针可操作内存

    UnidbgPointer pointer = memory.pointer(0x4000000);

    // 获取当前内存映射情况

    Collection<MemoryMap> memoryMap = memory.getMemoryMap();

    // 根据模块名来拿到某个模块

    Module module = memory.findModule("module name");

    // 根据地址拿到某个模块

    Module module = memory.findModuleByAddress(0x40000000);

}

public void VM_use(){

    // 推荐指定 APK 文件，Unidbg 会自动做许多固定的操作

    VM vm = emulator.createDalvikVM(new File("E:\\oacia\\my.apk"));

    // 是否输出 JNI 运行日志

    vm.setVerbose(true);

    // 加载 SO 模块 参数二设置是否自动调用 init 函数

    DalvikModule dalvikModule = vm.loadLibrary(new File("E:\\oacia\\libc.so"), true);

    // 设置 JNI 交互接口 参数需实现 Jni 接口，推荐使用 this 继承 AbstractJni

    vm.setJni(this);

    // 获取 JNIEnv 指针，可作为参数传递

    Pointer jniEnv = vm.getJNIEnv();

    // 获取 JavaVM 指针，可作为参数传递

    Pointer javaVM = vm.getJavaVM();

    // 调用 JNI_OnLoad 函数

    vm.callJNI_OnLoad(emulator,dalvikModule.getModule());

    // 向 VM 添加全局对象，返回该对象的 hash 值

    int hash = vm.addGlobalObject(dvmObj);

    // 获取虚拟机中的对象，参数为该对象的 hash 值

    DvmObject<?> object = vm.getObject(hash);

}

// 调用导出函数

public void call_export_function(){

    Module oacia_module = vm.loadLibrary(new File("E:/oacia/liboacia.so"),false).getModule();

    Number result =  oacia_module.callFunction(emulator,"_Z3addii", 1,2);

    System.out.println("_Z3addii result:"+result.intValue());

}

// 调用 JNI 函数

public void call_JNI_function(){

    // 调用 jni 函数，对于动态注册的 jni 函数必须在完成地址的绑定才能调用

    DvmClass MainActivity_dvmclass = vm.resolveClass("com/example/unicorncourse08/MainActivity");// 先把类找到，这里的原理很像反射

    DvmObject<?> resultobj = MainActivity_dvmclass.callStaticJniMethodObject(emulator,"stringFromJNI1(Ljava/lang/String;)Ljava/lang/String;","helloworld");// 再通过类去调用里面的函数

    System.out.println("resultobj:"+resultobj);

}

// 调用任意函数

public void call_any_function(){

    // 获取 JNIEnv *

    Pointer jniEnv = vm.getJNIEnv();

    // 创建 jobject 对象

    DvmObject<?> thiz = vm.resolveClass("com.oacia.test").newObject(null);

    // 准备入参

    List<Object> args = new ArrayList<>();

    args.add(jniEnv);

    args.add(vm.addLocalObject(thiz));

    args.add(vm.addLocalObject(new StringObject(vm,"XuE")));

    // 根据地址调用

    Number numbers = module.callFunction(emulator, 0x9180 + 1, args.toArray());

    System.out.println(numbers.intValue());

}

// 调用形参是指针类型的函数

// 假设我们需要调用的函数为 void md5 (const uint8_t *initial_msg, size_t initial_len, uint8_t *digest);

// 其中 initial_msg 和 digest 都是指针类型

public void call_argv_point_type_function(){

    String initial = "unidbg";

    int initial_length = initial.length();

    // 开辟一块的空间来存放第一个参数

    MemoryBlock initial_msg = emulator.getMemory().malloc(initial_length+1, false);

    UnidbgPointer initial_msg_ptr = initial_msg.getPointer();

    // 将参数 1 写入

    initial_msg_ptr.write(initial.getBytes());

    // 开辟一块 16 字节的空间来存放第 2 个参数

    MemoryBlock digest = emulator.getMemory().malloc(16, false);

    UnidbgPointer digest_ptr=digest.getPointer();

    // 准备入参

    List<Object> args = new ArrayList<>();

    args.add(initial_msg);

    args.add(initial_length);

    args.add(digest_ptr);

    // 执行

    module.callFunction(emulator, 0x7A8D + 1, args.toArray());

    // 打印结果

    Inspector.inspect(digest_ptr.getByteArray(0, 0x10), "digest");

}

// 加载 so 到虚拟内存

DalvikModule dm = vm.loadLibrary("libnative-lib.so", true);

// 加载好的 so 对应为一个模块

module = dm.getModule();

// 打印 libnative-lib.so 在 Unidbg 虚拟内存中的基地址

System.out.println("baseAddr:"+module.base);

// 获取某个具体 SO 的句柄

Module yourModule = emulator.getMemory().findModule("yourModuleName");

// 打印其基地址

System.out.println("baseAddr:"+yourModule.base);

public interface Memory extends IO, Loader, StackMemory {

    long STACK_BASE = 0xc0000000L;

    int STACK_SIZE_OF_PAGE = 256; // 1024k

    // 修改内存映射的起始地址

    long MMAP_BASE = 0x40000000L;

    UnidbgPointer allocateStack(int size);

    UnidbgPointer pointer(long address);

    void setStackPoint(long sp);

}

// 加载 so 到虚拟内存

DalvikModule dm = vm.loadLibrary("libnative-lib.so", true);

// 加载好的 libnative-lib.so 对应为一个模块

module = dm.getModule();

int address = (int) module.findSymbolByName("funcNmae").getAddress();

// 加载 so 到虚拟内存

DalvikModule dm = vm.loadLibrary("libnative-lib.so", true);

// 加载好的 so 对应为一个模块

module = dm.getModule();

//offset，在 IDA 中查看

int offset = 0x1768;

// 真实地址 = baseAddr + offset

int address = (int) (module.base + offset);

// debug

emulator.attach().addBreakPoint(module.findSymbolByName("base64_encode").getAddress());

public void HookByConsoleDebugger(){

    emulator.attach().addBreakPoint(module.findSymbolByName("base64_encode").getAddress(), new BreakPointCallback() {

        @Override

        public boolean onHit(Emulator<?> emulator, long address) {

            RegisterContext context = emulator.getContext();

            Pointer input = context.getPointerArg(0);

            int length = context.getIntArg(1);

            Pointer buffer = context.getPointerArg(2);

            Inspector.inspect(input.getByteArray(0, length), "base64 input");

            // OnLeave

            emulator.attach().addBreakPoint(context.getLRPointer().peer, new BreakPointCallback() {

                @Override

                public boolean onHit(Emulator<?> emulator, long address) {

                    String result = buffer.getString(0);

                    System.out.println("base64 result:"+result);

                    return true;

                }

            });

            return true;

        }

    });

}

emulator.attach().addBreakPoint(module.findSymbolByName("base64_encode").getAddress());

public void ReplaceArgByConsoleDebugger(){

    emulator.attach().addBreakPoint(module.findSymbolByName("base64_encode").getAddress(), new BreakPointCallback() {

        @Override

        public boolean onHit(Emulator<?> emulator, long address) {

            RegisterContext context = emulator.getContext();

            String fakeInput = "hello world";

            int length = fakeInput.length();

            // 修改 r1 值为新长度

            emulator.getBackend().reg_write(ArmConst.UC_ARM_REG_R1, length);

            MemoryBlock fakeInputBlock = emulator.getMemory().malloc(length, true);

            fakeInputBlock.getPointer().write(fakeInput.getBytes(StandardCharsets.UTF_8));

            // 修改 r0 为指向新字符串的新指针

            emulator.getBackend().reg_write(ArmConst.UC_ARM_REG_R0, fakeInputBlock.getPointer().peer);

            Pointer buffer = context.getPointerArg(2);

            // OnLeave

            emulator.attach().addBreakPoint(context.getLRPointer().peer, new BreakPointCallback() {

                @Override

                public boolean onHit(Emulator<?> emulator, long address) {

                    String result = buffer.getString(0);

                    System.out.println("base64 result:"+result);

                    return true;

                }

            });

            return true;

        }

    });

}

public void ReplaceRetByConsoleDebugger(){

    emulator.attach().addBreakPoint(module.findSymbolByName("verifyApkSign").getAddress(), new BreakPointCallback() {

        @Override

        public boolean onHit(Emulator<?> emulator, long address) {

            RegisterContext context = emulator.getContext();

            // OnLeave

            emulator.attach().addBreakPoint(context.getLRPointer().peer, new BreakPointCallback() {

                @Override

                public boolean onHit(Emulator<?> emulator, long address) {

                    emulator.getBackend().reg_write(ArmConst.UC_ARM_REG_R0, 0);

                    return true;

                }

            });

            return true;

        }

    });

}

public void ReplaceFuncByConsoleDebugger(){

    emulator.attach().addBreakPoint(module.findSymbolByName("verifyApkSign").getAddress(), new BreakPointCallback() {

        @Override

        public boolean onHit(Emulator<?> emulator, long address) {

            System.out.println("替换函数 verifyApkSign");

            RegisterContext registerContext = emulator.getContext();

            emulator.getBackend().reg_write(ArmConst.UC_ARM_REG_PC, registerContext.getLRPointer().peer);

            emulator.getBackend().reg_write(ArmConst.UC_ARM_REG_R0, 0);

            return true;

        }

    });

}

public void HookByUnicorn(){

    long start = module.base+0x97C;

    long end = module.base+0x97C+0x17A;

    emulator.getBackend().hook_add_new(new CodeHook() {

        @Override

        public void hook(Backend backend, long address, int size, Object user) {

            RegisterContext registerContext = emulator.getContext();

            if(address == module.base + 0x97C){

                int r0 = registerContext.getIntByReg(ArmConst.UC_ARM_REG_R0);

                System.out.println("0x97C 处 r0:"+Integer.toHexString(r0));

            }

            //capstone 引擎的使用

            Capstone capstone = new Capstone(Capstone.CS_ARCH_ARM64,Capstone.CS_MODE_ARM);

                byte[] bytes = emulator.getBackend().mem_read(address, 4);

                Instruction[] disasm = capstone.disasm(bytes, 0);

        }

        @Override

        public void onAttach(Unicorn.UnHook unHook) {

        }

        @Override

        public void detach() {

        }

    }, start, end, null);

}

public void HookByXhook(){

    IxHook xHook = XHookImpl.getInstance(emulator);

    xHook.register("libhookinunidbg.so", "base64_encode", new ReplaceCallback() {

        @Override

        public HookStatus onCall(Emulator<?> emulator, HookContext context, long originFunction) {

            Pointer input = context.getPointerArg(0);

            int length = context.getIntArg(1);

            Pointer buffer = context.getPointerArg(2);

            Inspector.inspect(input.getByteArray(0, length), "base64 input");

            context.push(buffer);

            return HookStatus.RET(emulator, originFunction);

        }

        @Override

        public void postCall(Emulator<?> emulator, HookContext context) {

            Pointer buffer = context.pop();

            System.out.println("base64 result:"+buffer.getString(0));

        }

    }, true);

    // 使其生效

    xHook.refresh();

}

public void ReplaceArgByXhook(){

    IxHook xHook = XHookImpl.getInstance(emulator);

    xHook.register("libhookinunidbg.so", "base64_encode", new ReplaceCallback() {

        @Override

        public HookStatus onCall(Emulator<?> emulator, HookContext context, long originFunction) {

            String fakeInput = "hello world";

            int length = fakeInput.length();

            // 修改 r1 值为新长度

            emulator.getBackend().reg_write(ArmConst.UC_ARM_REG_R1, length);

            MemoryBlock fakeInputBlock = emulator.getMemory().malloc(length, true);

            fakeInputBlock.getPointer().write(fakeInput.getBytes(StandardCharsets.UTF_8));

            // 修改 r0 为指向新字符串的新指针

            emulator.getBackend().reg_write(ArmConst.UC_ARM_REG_R0, fakeInputBlock.getPointer().peer);

            Pointer buffer = context.getPointerArg(2);

            context.push(buffer);

            return HookStatus.RET(emulator, originFunction);

        }

        @Override

        public void postCall(Emulator<?> emulator, HookContext context) {

            Pointer buffer = context.pop();

            System.out.println("base64 result:"+buffer.getString(0));

        }

    }, true);

    // 使其生效

    xHook.refresh();

}

public void ReplaceFuncByHookZz(){

    HookZz hook = HookZz.getInstance(emulator);

    hook.replace(module.findSymbolByName("verifyApkSign").getAddress(), new ReplaceCallback() {

        @Override

        public HookStatus onCall(Emulator<?> emulator, HookContext context, long originFunction) {

            emulator.getBackend().reg_write(Unicorn.UC_ARM_REG_R0,0);

            return HookStatus.RET(emulator,context.getLR());

        }

    });

}

public void HookByHookZz(){

    IHookZz hookZz = HookZz.getInstance(emulator); // 加载 HookZz，支持 inline hook

    hookZz.enable_arm_arm64_b_branch(); // 测试 enable_arm_arm64_b_branch，可有可无

    hookZz.wrap(module.findSymbolByName("base64_encode"), new WrapCallback<HookZzArm32RegisterContext>() {

        @Override

        public void preCall(Emulator<?> emulator, HookZzArm32RegisterContext context, HookEntryInfo info) {

            Pointer input = context.getPointerArg(0);

            int length = context.getIntArg(1);

            Pointer buffer = context.getPointerArg(2);

            Inspector.inspect(input.getByteArray(0, length), "base64 input");

            context.push(buffer);

        }

        @Override

        public void postCall(Emulator<?> emulator, HookZzArm32RegisterContext context, HookEntryInfo info) {

            Pointer buffer = context.pop();

            System.out.println("base64 result:"+buffer.getString(0));

        }

    });

    hookZz.disable_arm_arm64_b_branch();

}

public void ReplaceArgByHookZz(){

    IHookZz hookZz = HookZz.getInstance(emulator); // 加载 HookZz，支持 inline hook

    hookZz.enable_arm_arm64_b_branch(); // 测试 enable_arm_arm64_b_branch，可有可无

    hookZz.wrap(module.findSymbolByName("base64_encode"), new WrapCallback<HookZzArm32RegisterContext>() {

        @Override

        public void preCall(Emulator<?> emulator, HookZzArm32RegisterContext context, HookEntryInfo info) {

            Pointer input = context.getPointerArg(0);

            String fakeInput = "hello world";

            input.setString(0, fakeInput);

            context.setR1(fakeInput.length());

            Pointer buffer = context.getPointerArg(2);

            context.push(buffer);

        }

        @Override

        public void postCall(Emulator<?> emulator, HookZzArm32RegisterContext context, HookEntryInfo info) {

            Pointer buffer = context.pop();

            System.out.println("base64 result:"+buffer.getString(0));

        }

    });

    hookZz.disable_arm_arm64_b_branch();

}

public void HookByWhale(){

    IWhale whale = Whale.getInstance(emulator);

    whale.inlineHookFunction(module.findSymbolByName("base64_encode"), new ReplaceCallback() {

        Pointer buffer;

        @Override

        public HookStatus onCall(Emulator<?> emulator, long originFunction) {

            RegisterContext context = emulator.getContext();

            Pointer input = context.getPointerArg(0);

            int length = context.getIntArg(1);

            buffer = context.getPointerArg(2);

            Inspector.inspect(input.getByteArray(0, length), "base64 input");

            return HookStatus.RET(emulator, originFunction);

        }

        @Override

        public void postCall(Emulator<?> emulator, HookContext context) {

            System.out.println("base64 result:"+buffer.getString(0));

        }

    }, true);

}

public void SearchAndPatch(){

    byte[] patterns = {(byte) 0x80, (byte) 0xb5,0x6f,0x46, (byte) 0x84, (byte) 0xb0,0x03, (byte) 0x90,0x02, (byte) 0x91};

    Collection<Pointer> pointers = searchMemory(module.base, module.base+module.size, patterns);

    if(pointers.size() > 0){

        try (Keystone keystone = new Keystone(KeystoneArchitecture.Arm, KeystoneMode.ArmThumb)) {

            KeystoneEncoded encoded = keystone.assemble("movs r0,0;nop");

            byte[] patchCode = encoded.getMachineCode();

            ((ArrayList<Pointer>) pointers).get(0).write(10, patchCode, 0, patchCode.length);

        }

    }

}

private Collection<Pointer> searchMemory(long start, long end, byte[] data) {

    List<Pointer> pointers = new ArrayList<>();

    for (long i = start, m = end - data.length; i < m; i++) {

        byte[] oneByte = emulator.getBackend().mem_read(i, 1);

        if (data[0] != oneByte[0]) {

            continue;

        }

        if (Arrays.equals(data, emulator.getBackend().mem_read(i, data.length))) {

            pointers.add(UnidbgPointer.pointer(emulator, i));

            i += (data.length - 1);

        }

    }

    return pointers;

}
